Cheek Block, Wire Rope, 1/4 in Max Cable Size, Not Rated Max Load, Electro-Galvanized MPN:3-010-12-86-
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4488671

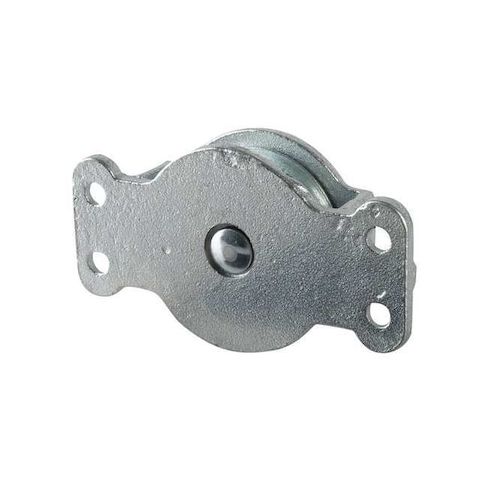

Cheek Block, Wire Rope, 1/4 in Max Cable Size, Not Rated Max Load, Electro-Galvanized
Elevate your lifting and pulling operations with the PEERLESS HARDWARE Cheek Block, Wire Rope. Designed for heavy-duty use, this electro-galvanized steel pulley block features a 1/4 in max cable size and a sturdy side mount design. Ideal for lifting, pulling, and attachment applications, this reliable block boasts a large sheave diameter and a robust bearing system. With a compact footprint and easy installation, the Cheek Block is perfect for construction, manufacturing, and industrial settings where efficiency and safety are paramount. Its durability and versatility make it a valuable addition to any equipment fleet.
Top product features:
- Electro-Galvanized coating for corrosion resistance
- Side mount design for flexible installation options
- Single groove design for smooth wire rope handling
Top product applications:
- Lifting heavy machinery
- Pulling heavy loads in construction
- Attachment to a crane or hoist
Pulley Block, Product Type Cheek Pulley Block, Pulley Type Mounted, Mount Type Side Mount, Working Load Limit Not Rated, Operation Lifting, Pulling, Attachment Type Bolt-On, Compatible Rope Diameter 1/4 in, Sheave Inside Diameter 1 17/32 in, Sheave Depth 15/32 in, Sheave Outside Diameter 2 in, Compatible Rope Type Wire Rope, Bearing Type Sleeve, Attachment Inside Diameter Not Applicable, Housing Material Steel, Mounting Hole Diameter 7/32 in, Number of Grooves 1, Sheave Material Steel
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.40
- Package Height: 0.80
- Package Weight: 0.75
Product info last updated on February 8, 2026 4:51am UTC
Category: Lifting, Pulling and Positioning
