Compact Linear Actuator, 2, 500 N, Ball MPN:CSLSM10AGXR3A1-2LT-1000-0
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G809769198

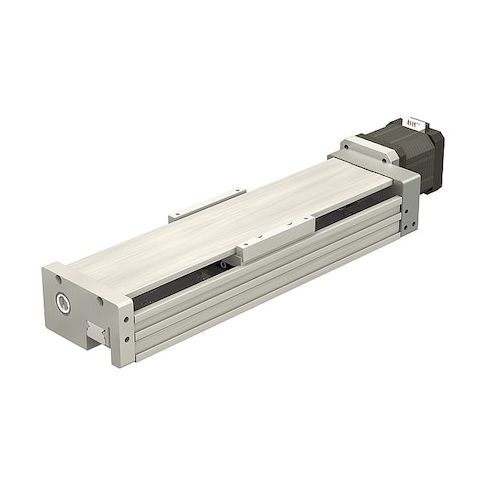

Compact Linear Actuator, 2, 500 N, Ball
The Pbc Linear Compact Linear Actuator is a high-performance solution for precise motion control in a compact design. With a bearing load capacity of 2,500 N and a repeatability of 0.02 mm, this actuator is ideal for applications requiring high accuracy and reliability. Its compact profile rail design makes it suitable for use in a variety of industries, including robotics, medical devices, and precision machinery. The actuator's stepper motor and anti-backlash nut ensure smooth and precise movement, making it an excellent choice for applications such as assembly, testing, and inspection. It ships in 20 days with a minimum order quantity of 1.
Top product features:
- Compact Linear Actuator provides 2,500 N of bearing load capacity
- Carriage Type Profile Rail design enables repeatable motion with 0.02 mm accuracy
- Integrated Motor Screw drive end option allows for direct motor mounting
Top product applications:
- Robotics and Automation
- Automotive Component Manufacturing
- Medical Device Assembly
Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 10 mm, Lead Diameter 10 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Single Stack, Drive End Option PBC Linear Integrated Motor Screw, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type Tall, Stroke Length 10 mm, Rail Length 1,000 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 2,500 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 48.50
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 4.00
Product info last updated on February 19, 2026 12:57pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
