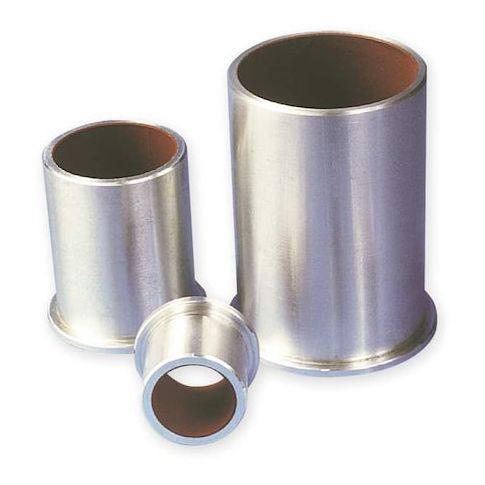

Linear Sleeve Flange Bearing, ID 2 1/2 In MPN:PSF4044-24
Linear Sleeve Flange Bearing, ID 2 1/2 In
The Pbc Linear Linear Sleeve Flange Bearing is a high-performance bearing designed for demanding applications. With a static load capacity of 22,364 lbf and a maximum operating temperature range of -400°F to 400°F, this bearing can withstand extreme conditions. The Frelon Gold liner provides self-lubrication and reduces wear, while the aluminum construction ensures light weight and corrosion resistance. Suitable for use in aerospace, medical, and industrial applications, this bearing is ideal for precision machinery, robotic systems, and other high-precision equipment. Its compact design and high load capacity make it an excellent choice for applications requiring high reliability and performance.
Top product features:
- Self-lubricating design allows for reduced maintenance and extended bearing life
- Closed bearing design provides protection from contamination and debris
- Frelon Gold liner offers high wear resistance and low friction for smooth operation
Top product applications:
- Automotive Steering Systems
- Robotics and Automation
- Aerospace Applications
Linear Sleeve Bearing, System of Measurement Inch, Inside Diameter 2 1/2 in, Outside Diameter 2 3/4 in, Overall Length 3 in, Static Load Capacity 22,364 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series PSF, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter 3 in, Flange Thickness 1/8 in, Bearing Type Closed, Recommended Housing Bore 2.752 in, Maximum PV 20,000 lb/sq in-fpm, Color Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.30
- Package Height: 4.40
- Package Weight: 0.35
Product info last updated on January 16, 2026 10:21am UTC
Category: Bearings, V-belts and Power Transmission Equipment
