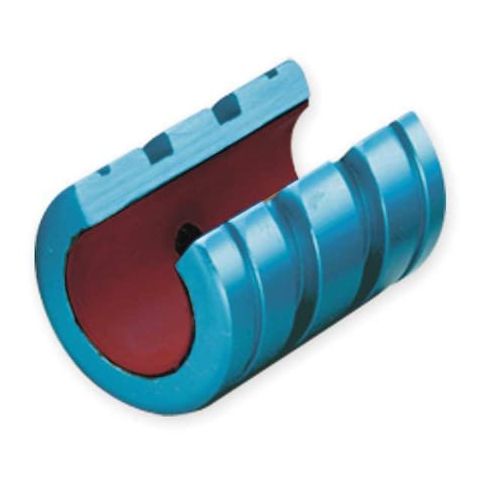

Standard Linear Bearing, 16mm MPN:FMN16
Standard Linear Bearing, 16mm
This standard linear bearing from Pbc Linear is a high-performance solution for a variety of applications, including robotics, medical devices, and industrial automation. With a precision running clearance class and self-lubricating Frelon Gold liner, it provides smooth and quiet operation, even in extreme temperatures from -400°F to 400°F. The bearing's static load capacity of 11,870 N and maximum PV of 20,000 lb/sq in-fpm make it suitable for demanding applications. Its compact size and lightweight aluminum construction also make it ideal for use in confined spaces and weight-sensitive systems. This bearing is perfect for OEMs and manufacturers seeking a reliable and efficient solution.
Top product features:
- Self-lubricating design provides reduced maintenance needs
- Frelon Gold liner offers high wear resistance and low friction
- Operating temperature range of -400 to 400°F enables use in extreme environments
Top product applications:
- Robotics and Automation
- Medical Device Manufacturing
- Aerospace Engineering
Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 16 mm, Outside Diameter 25.99 mm, Overall Length 36 mm, Static Load Capacity 11,870 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FMN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Bearing Type Open, Inside Diameter Tolerance +0.093/+0.066 mm, Maximum PV 20,000 lb/sq in-fpm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 1.40
- Package Height: 1.90
- Package Weight: 0.05
Product info last updated on February 23, 2026 10:57pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
