Standard Linear Bearing, 12mm MPN:FMN12

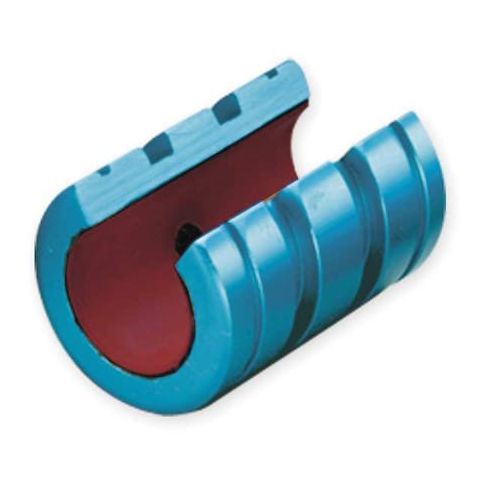

Standard Linear Bearing, 12mm
The Pbc Linear Standard Linear Bearing is a high-performance component designed for precision applications. With a 12mm inside diameter and 21.99mm outside diameter, it offers a compact solution for linear motion systems. The bearing's Frelon Gold liner provides self-lubrication and a running clearance class precision, ensuring smooth operation and long lifespan. Suitable for use in extreme temperatures (-400°F to 400°F), this bearing is ideal for applications in aerospace, medical devices, and industrial automation. Its high static load capacity and maximum PV rating make it a reliable choice for demanding environments.
Top product features:
- Self-lubricating for reduced maintenance
- Frelon(TM) Gold liner for low friction and smooth operation
- Maximum operating temperature of 400 Degrees F for high-temperature applications
Top product applications:
- Robotics and Automation
- Conveyor Systems
- Medical Equipment
Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 12 mm, Outside Diameter 21.99 mm, Overall Length 32 mm, Static Load Capacity 7,907 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FMN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Bearing Type Open, Inside Diameter Tolerance +0.093/+0.066 mm, Maximum PV 20,000 lb/sq in-fpm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 1.40
- Package Height: 1.90
- Package Weight: 0.05
Product info last updated on February 27, 2026 7:08am UTC
Category: Bearings, V-belts and Power Transmission Equipment
