Standard Linear Bearing, 1-1/4 In. MPN:FLN20
Standard Linear Bearing, 1-1/4 In.

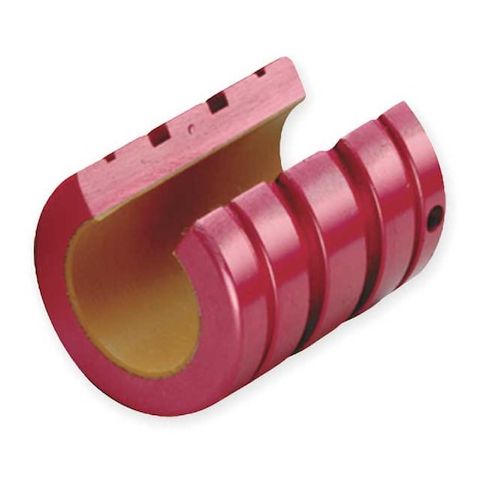

This Standard Linear Bearing from Pbc Linear offers precision and reliability in a compact package. Suitable for a wide range of applications, including robotics, medical devices, and industrial machinery, this bearing provides a smooth and quiet operation. The self-lubricating Frelon Gold liner ensures long-lasting performance, while the aluminum construction offers durability and resistance to corrosion. With a static load capacity of 5,415 lbf and operating temperature range of -400°F to 400°F, this bearing can handle demanding environments. Its compact size and lightweight design make it ideal for space-constrained applications, such as precision assembly and automation systems.
Top product features:
- Self-lubricating design for reduced maintenance
- Running clearance class precision for smooth operation
- Aluminum construction for high strength-to-weight ratio
Top product applications:
- Automotive applications such as power window regulators and door tracks
- Aerospace applications where high-temperature and extreme-temperature resistance is required
- Machine tool applications where high precision and self-lubrication are necessary
Standard Linear Bearing, System of Measurement Inch, Running Clearance Class Precision, Inside Diameter 1/4 in, Outside Diameter 2 in, Overall Length 2 5/8 in, Static Load Capacity 5,415 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FLN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Open, Inside Diameter Tolerance +0.0009/+0.0004 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 2.10
- Package Height: 2.90
- Package Weight: 0.40
Product info last updated on March 1, 2026 4:36am UTC
Category: Bearings, V-belts and Power Transmission Equipment
