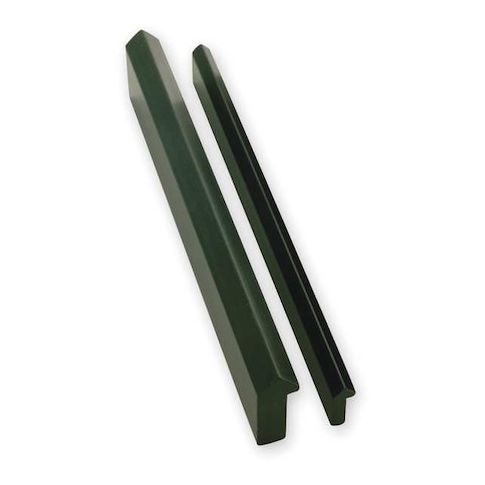

Linear Rail, 24.75 In L, 0.343 W, 0.875 H MPN:VRD3-024.750
Linear Rail, 24.75 In L, 0.343 W, 0.875 H
The Pbc Linear Linear Rail is a high-performance steel rail designed for precision motion and linear movement. Ideal for use with V-Guide wheels and bushings, this rail enables smooth and quiet operation in a variety of applications, including automation, robotics, and machine design. Its compact size and low profile make it perfect for use in tight spaces, while its cold roll finish ensures durability and resistance to corrosion. With a maximum operating temperature of 180°F and a minimum operating temperature of 0°F, this rail can handle a wide range of environments and applications.
Top product features:
- For Use With V-Guide Wheels and Bushings
- Operating Temperature Range -40°F to 180°F
- Mounting Holes with 3-Inch Center-to-Center Spacing
Top product applications:
- Linear Rail for CNC Machine Tools
- Automotive Component Assembly Lines
- Robotics and Automation Systems
Drilled Linear Rail, Overall Length 24.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Steel, Manufacturer Size 3, Number of Mounting Holes 9, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.875 in, Channel Material Steel, Series V-Guide
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.80
- Package Width: 0.90
- Package Height: 0.30
- Package Weight: 1.37
Product info last updated on February 6, 2026 1:15am UTC
Category: Bearings, V-belts and Power Transmission Equipment
