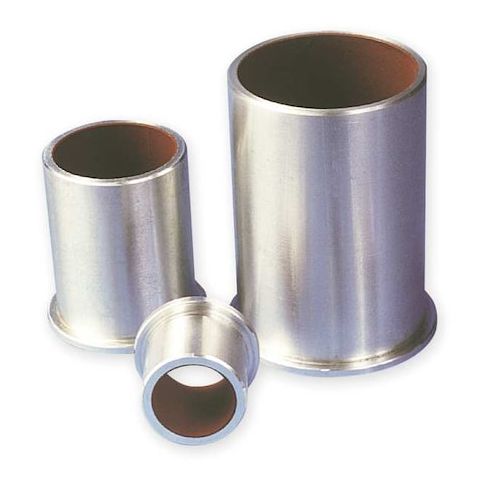

Linear Sleeve Flange Bearing, ID 3/8 In MPN:PSF0610-04
Linear Sleeve Flange Bearing, ID 3/8 In
The Linear Sleeve Flange Bearing from Pbc Linear is a high-performance bearing designed for applications requiring precision and reliability. With a static load capacity of 542 lbf and a maximum operating temperature of 400°F, this bearing is ideal for use in harsh environments. The self-lubricating Frelon Gold liner provides long-lasting wear resistance and minimizes maintenance. Suitable for applications in aerospace, medical, and industrial automation, this bearing offers a compact design with a small package size and a lead time of just 2 days. Its versatility and reliability make it an excellent choice for a wide range of industries and applications.
Top product features:
- Self-Lubrication allows for reduced maintenance and increased operating life.
- Frelon(TM) Gold liner provides high wear resistance and low friction.
- Maximum Operating Temperature of 400 Degrees F enables use in high-temperature applications.
Top product applications:
- Robotics and automation systems
- Medical device manufacturing and assembly
- Aerospace and defense applications
Linear Sleeve Bearing, System of Measurement Inch, Inside Diameter 3/8 in, Outside Diameter 5/8 in, Overall Length 1/2 in, Static Load Capacity 542 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series PSF, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter 7/8 in, Flange Thickness 1/8 in, Bearing Type Closed, Recommended Housing Bore 0.627 in, Maximum PV 20,000 lb/sq in-fpm, Color Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 1.30
- Package Height: 1.80
- Package Weight: 0.05
Product info last updated on March 31, 2026 4:35pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
