Standard Linear Bearing, 30mm MPN:FMN30

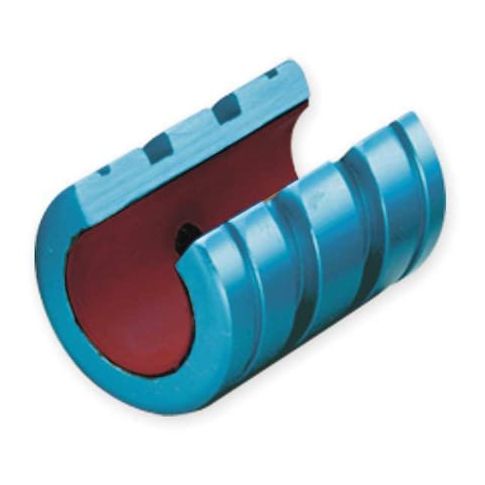

Standard Linear Bearing, 30mm
This Standard Linear Bearing from Pbc Linear is a reliable and versatile solution for a wide range of applications. With a static load capacity of 42,026 N and a self-lubricating Frelon Gold liner, it provides smooth and quiet operation in even the most demanding environments. Its broad temperature range (-400°F to 400°F) and high PV rating make it suitable for use in various industries, including automation, robotics, and medical equipment. The compact design and lightweight construction also make it an ideal choice for applications where space and weight are limited, such as in aerospace and marine systems.
Top product features:
- Self-lubricating design for reduced maintenance
- Frelon(TM) Gold liner for improved wear resistance
- Operating temperature range of -400°F to 400°F for use in extreme environments
Top product applications:
- Robotics and automation systems
- Conveyor systems in food processing and packaging
- Precision machinery in aerospace and defense industries
Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 30 mm, Outside Diameter 46.99 mm, Overall Length 68 mm, Static Load Capacity 42,026 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FMN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Bearing Type Open, Inside Diameter Tolerance +0.009/+0.096 mm, Maximum PV 20,000 lb/sq in-fpm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 2.10
- Package Height: 2.90
- Package Weight: 0.25
