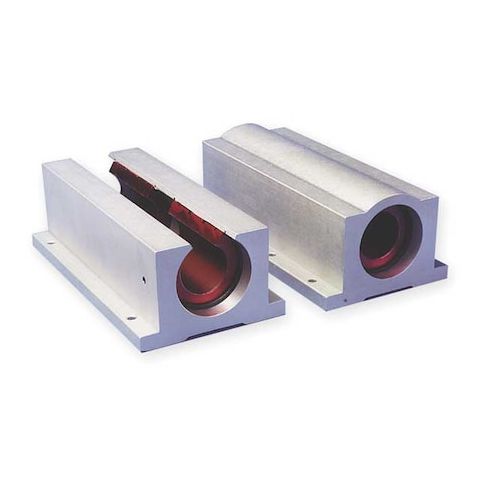

Pillow Block, 2.000 In Bore, 10.000 In L MPN:PW32
Pillow Block, 2.000 In Bore, 10.000 In L
This self-aligning pillow block linear bearing from Pbc Linear is designed for heavy-duty applications, offering a high static load capacity of 50,100 lbf and dynamic load capacity of 25,050 lbf. Its Frelon Gold liner material provides low friction and high wear resistance, making it ideal for use in high-speed applications up to 5 fps. The bearing is suitable for use in a variety of industries, including aerospace, automotive, and manufacturing, where high precision and reliability are required. Its compact design and easy installation make it a convenient choice for applications where space is limited.
Top product features:
- Self-Alignment enables the bearing to adjust to misalignments in the shaft, ensuring smooth operation and extending the life of the bearing.
- Frelon(TM) Gold liner material provides low friction and wear resistance, reducing maintenance and increasing the bearing's lifespan.
- The retaining ring locking mechanism securely holds the bearing in place, preventing it from coming loose or shifting during operation.
Top product applications:
- Conveyor System
- Machine Tool
- Robotics
Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 2 in, Overall Length 10 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 50,100 lbf, Dynamic Load Capacity 25,050 lbf, Steady State Speed 5 fps, Series PW, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Twin, Pillow Block Type Closed, Locking Type Retaining Ring, Bolt Size 3/8 in, Overall Height 4 1/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.20
- Package Width: 6.80
- Package Height: 7.10
- Package Weight: 14.15
Product info last updated on February 27, 2026 9:02am UTC
Category: Bearings, V-belts and Power Transmission Equipment
