Pillow Block, 2.000 In Bore, 10.000 In L MPN:PWN32

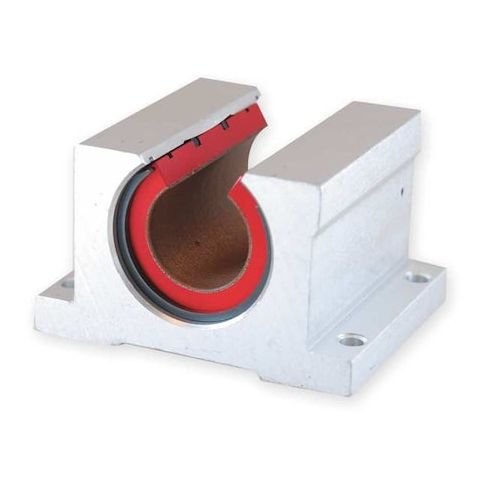

Pillow Block, 2.000 In Bore, 10.000 In L
The Pbc Linear Pillow Block is a high-performance linear bearing designed for demanding applications. Its self-aligning design and Frelon Gold liner ensure smooth operation and long lifespan, while its aluminum alloy construction provides exceptional strength and durability. With a static load capacity of 50,100 lbf and dynamic load capacity of 25,050 lbf, this bearing is ideal for heavy-duty industrial applications, including machine tooling, robotics, and automation. Its temperature range of -400°F to 400°F makes it suitable for use in extreme environments, and its compact design allows for easy integration into tight spaces.
Top product features:
- Self-Alignment: The bearing self-aligns to maintain smooth operation even when the shaft is not perfectly straight.
- Liner Material: The Frelon(TM) Gold liner material provides low friction and high wear resistance for extended bearing life.
- Static Load Capacity: The bearing can support a static load of up to 50,100 pounds.
Top product applications:
- Conveyor systems
- Automotive manufacturing equipment
- Aerospace machinery
Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 2 in, Overall Length 10 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 50,100 lbf, Dynamic Load Capacity 25,050 lbf, Steady State Speed 5 fps, Series PWN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Twin, Pillow Block Type Open, Locking Type Roll Pin, Bolt Size 3/8 in, Finish Clear Anodize
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 6.40
- Package Height: 6.70
- Package Weight: 12.50
Product info last updated on February 27, 2026 12:22am UTC
Category: Bearings, V-belts and Power Transmission Equipment
