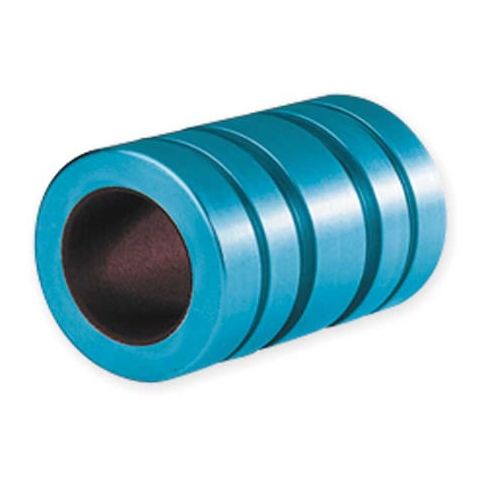

Standard Linear Bearing, 5mm MPN:FM05
Standard Linear Bearing, 5mm
This 5mm standard linear bearing from Pbc Linear is ideal for applications requiring high precision and smooth operation in extreme temperatures. With a static load capacity of 2,276 N and a wide operating temperature range of -400°F to 400°F, this bearing is suitable for use in harsh environments. The Frelon Gold liner provides self-lubrication for reduced maintenance and increased efficiency. Its compact size and lightweight design make it perfect for use in medical devices, robotics, and other precision machinery, where smooth motion and reliable operation are critical.
Top product features:
- Self-lubrication for reduced maintenance and increased lifespan
- Closed bearing design for protection from contaminants and debris
- Frelon(TM) Gold liner for smooth operation and high load capacity
Top product applications:
- Robotics and automation
- Medical equipment
- Aerospace applications
Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 5 mm, Outside Diameter 12 mm, Overall Length 22 mm, Static Load Capacity 2,276 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FM, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed, Inside Diameter Tolerance +0.008/+0.06 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 1.40
- Package Height: 1.90
- Package Weight: 0.05
Product info last updated on January 14, 2026 4:15pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
