Compact Linear Actuator, 2, 500 N, Ball MPN:CSLSM10AGXR1ZF-2LT-1000-0
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G009769073

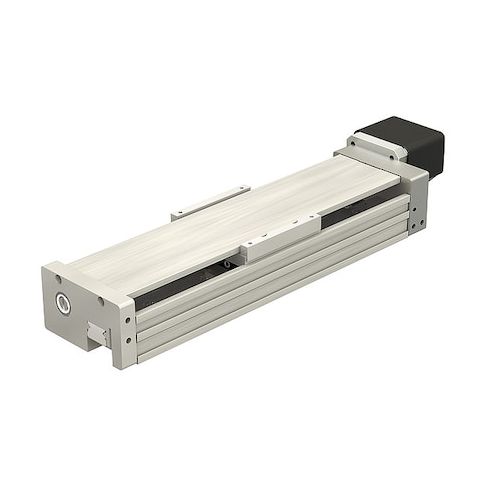

Compact Linear Actuator, 2, 500 N, Ball
The Pbc Linear Compact Linear Actuator is a powerful and compact solution for precision motion control. With a 2,500 N bearing load capacity and 0.02 mm repeatability, it's ideal for applications requiring high accuracy and reliability. Its compact design and tall cover make it perfect for use in tight spaces, while the NEMA 17 motor mount and stepper motor ensure smooth and precise movement. Suitable for use in industries such as robotics, medical devices, and laboratory equipment, this actuator is also great for applications like pick-and-place machines, CNC machines, and more. Its high precision and reliability make it a valuable addition to any system.
Top product features:
- Compact Linear Actuator provides a stroke length of 10 mm.
- Repeatability is 0.02 mm.
- The actuator has a bearing type of Ball and a bearing load capacity of 2,500 N.
Top product applications:
- Robotics and Automation
- Medical Device Assembly
- Precision Machine Tooling
Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 10 mm, Lead Diameter 10 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Motor Mount, Drive End Option Shaft, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type Tall, Stroke Length 10 mm, Rail Length 1,000 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 2,500 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 48.50
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 4.00
Product info last updated on January 19, 2026 10:19pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
