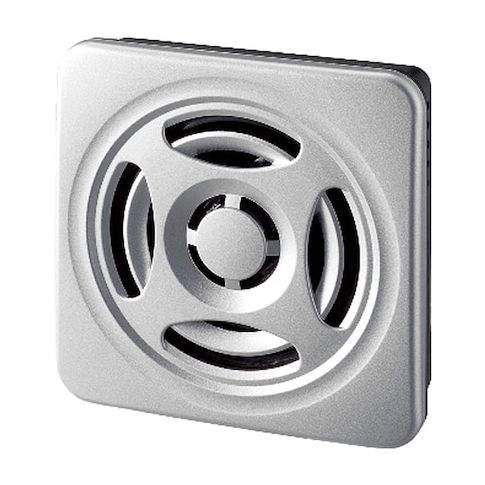

Audible Alarm, 87 dB, Pulse Tone, 12 to 24V DC, Silver, Flush/Surface Mount MPN:BSV-24N-S
The PATLITE Audible Alarm is a reliable and easy-to-install solution for various applications, including industrial, commercial, and residential settings. Its thin design and extended playback feature make it an ideal choice for a wide range of uses, from warning systems to messaging. The alarm's message rewriting capability allows for customizable alerts and notifications. With its CE, RoHS, and UL Listed certifications, the PATLITE Audible Alarm meets international safety standards. Its compact size and lightweight design make it easy to integrate into existing systems, making it a versatile and practical solution for various applications and industries.
Top product features:
- Easy Installation
- Extended Playback
- Message Rewriting
Top product applications:
- Factory warning systems
- Security systems for buildings and facilities
- Emergency evacuation systems
PATLITE BSV-24N-S is a wire-powered audible alarm for signaling applications with an IP54 rating. It operates on 12 to 24V DC with direct wire control and produces pulsed tone alerts with selectable volume up to 87 dB at 1 m. The silver housing supports flush or surface mounting.
Key Features:
- 15 sound patterns provide multiple audible alert options.
- Selectable volume with a maximum output of 87 dB at 1 m.
- Operates on 12 to 24V DC
- draws 0.146 A and is rated at 3.5 W.
- Direct wire control with wire lead connection.
- Mounting hardware included
- supports flush mount and surface mount installation.
- PC construction with IP54 rating.
- Operating temperature range: -10°C to 50°C.
- Features include extended playback and message rewriting.
- Standards: CE, RoHS, UL Listed.
- No vibration.
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.57
- Package Width: 3.54
- Package Height: 3.54
- Package Weight: 0.31
