Audible Alarm Signal Tower, 3-Tier LED, 24V DC, 105 dB, 100 mm Dia., Indoor MPN:LKEH-302FEUL-RYG

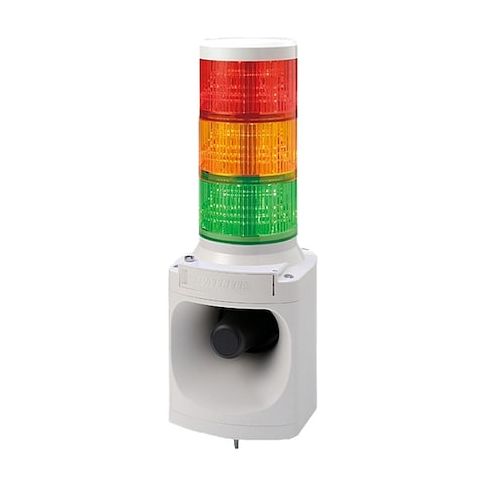

PATLITE LKEH-302FEUL-RYG is a 3-tier audible and visual signaling device for indoor use. It combines red, amber, and green LED light tiers with buzzer sound output and provides steady or flashing indication for machine status, process signaling, and facility alerts for applications that use both light and audible outputs.

Key Features:

• 3 light tiers with red, amber, and green LED indicators
• Light operating modes: flashing or steady
• Flash rate: 60 flashes per minute
• Audible buzzer sound level: 105 dB max.
• Operating voltage: 24V DC
• Operating current: 0.591 A max.
• Power consumption: 14.2 W
• Wire lead connection with direct wire control protocol
• Housing material: AES with polycarbonate lens
• Housing color: light gray
• IP53 rated
• Operating temperature range: -10°C to 50°C
• Overall size: 100 mm diameter x 385.3 mm height
• Light intensity: 2,100 mcd, 2,400 mcd, 5,200 mcd
• Standards: EN 55011, EN 61000-6-2, EN IEC 63000, UL
