Audible Alarm, LED Signal Tower, 3-Tier Red/Amber/Green, 24V DC, 105 dB, 100 mm Dia. MPN:LKEH-302FVUL-RYG
The PATLITE Audible Alarms are designed to provide reliable and high-quality sound signaling for a wide range of applications, including industrial, commercial, and residential settings. With 60 flashes per minute and a loud, clear sound, these alarms are perfect for alerting people to potential hazards, notifying staff of important events, or simply providing a visual and auditory cue. Their compact size and durable construction make them easy to install and maintain, while their compliance with international safety standards ensures they meet the highest standards of quality and reliability. Suitable for use in a variety of settings, including factories, warehouses, and offices.
Top product features:
- Overall Height 385 3/8 mm,
- 60 Flashes per Minute,
- Housing Material AES
Top product applications:
- Industrial Safety Systems
- Emergency Response Systems
- Alarm Systems for Critical Infrastructure

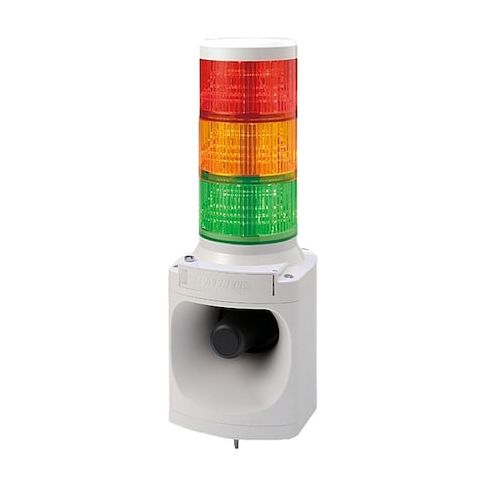

PATLITE LKEH-302FVUL-RYG is an indoor audible and visual signaling device with three LED light tiers in amber, green, and red, plus a buzzer sound output. It operates on 24V DC and offers steady or flashing light operation at 60 flashes per minute. The unit includes light and audible outputs for status indication and warning signaling applications.
Key Features:
- Three light tiers: amber, green, and red LED indicators
- Light operating modes: steady or flashing
- Flash rate: 60 flashes per minute
- Sound style: buzzer with maximum sound volume of 105 dB
- Operating voltage: 24V DC
- Operating current: 0.591 A maximum
- Wattage: 14.2 W
- Connection type: wire leads with direct wire control
- Housing material: AES with light gray housing color
- Lens material: polycarbonate
- IP rating: IP53
- Operating temperature range: -10 C to 50 C
- Overall size: 100 mm diameter x [verify height] mm height
- Light intensity: 2,100 mcd, 2,400 mcd, and 5,200 mcd
- Standards: EN 55011, EN 61000-6-2, EN IEC 63000, UL
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.44
- Package Width: 6.69
- Package Height: 7.09
- Package Weight: 5.25
