Audible Alarm, Flush Mount, 220V AC, 95 dB, Pulse Tone, Light Gray, Indoor/Outdoor MPN:BKV-31QF-J
The PATLITE Audible Alarms offer a range of features and benefits for various applications. With binary input as a standard option, users can select from up to 31 messages, making it ideal for complex systems. The device also features several playback modes, allowing for flexible use in different settings. The use of an SD card enables message changes without dismounting the device, reducing downtime and increasing productivity. Perfect for industrial, commercial, or residential use, these alarms provide clear audible warnings in emergency situations, ensuring a safe and efficient environment.
Top product features:
- Binary Input allows for the selection of up to 31 messages.
- Several Playback Modes are available for various applications.
- The use of an SD Card enables message changes without dis-mounting the device.
Top product applications:
- Industrial alarm systems
- Public address systems
- Emergency alert systems

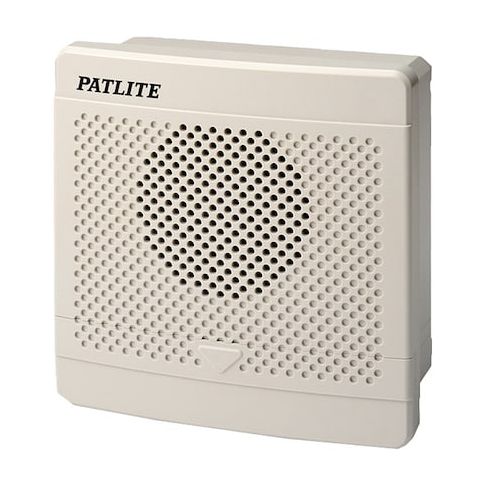

PATLITE BKV-31QF-J is a flush-mount audible alarm for indoor and outdoor installations within specified ratings. It produces a pulsed tone with a maximum sound level of 95 dB at 1 m and uses direct-wire control through a screw terminal connection. The unit supports message selection with standard binary input for up to 31 messages and includes SD card support for message changes without dismounting the device.
Key Features:
- - Maximum alarm volume: 95 dB at 1 m
- - Sound type: Pulse tone
- - Control/connection: Direct wire with screw terminal
- - Mounting style: Flush mount
- mounting hardware included
- - Voltage and power: 220V AC, 0.032 A operating current, 7 W
- - Ingress protection: IP54
- - Operating temperature range: -10°C to 50°C
- - Housing material and color: ABS, light gray
- - Message features: Standard binary input for selecting up to 31 messages
- multiple playback modes available
- includes SD card support for message changes without dismounting the device
- - Standards: MPEG Layer-3 Audio Coding Technology, RoHS
- - Overall size: 120 mm L x 120 mm W x 62 13/16 mm D
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.51
- Package Width: 5.51
- Package Height: 3.94
- Package Weight: 0.99
