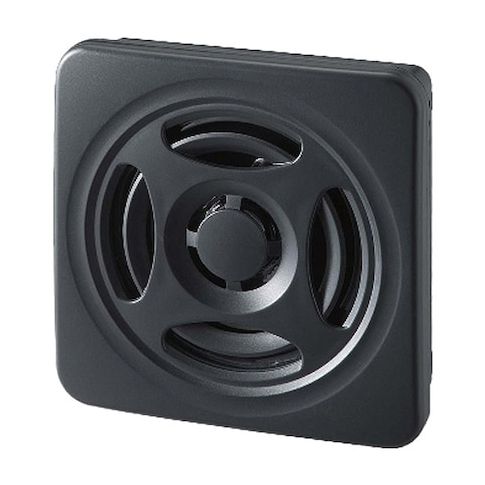

Audible Alarm, 87 dB, Pulse Tone, 12 to 24V DC, Dark Gray, Indoor/Outdoor MPN:BSV-24N-D
The Audible Alarms from PATLITE are designed for easy installation and extended playback, making them ideal for a variety of applications. Their thin design allows for discreet placement in tight spaces, while their durable construction ensures reliable operation. With features like message rewriting and a CE, RoHS, and UL Listed certification, these alarms meet the highest standards for safety and compliance. They are suitable for use in industrial settings, such as manufacturing facilities, warehouses, and construction sites, where audible warnings are crucial for maintaining a safe working environment.
Top product features:
- Easy Installation
- Extended Playback
- Message Rewriting
Top product applications:
- Industrial Warning Systems
- Machine Safety and Alert Systems
- Alarm Systems for Commercial and Industrial Applications
PATLITE BSV-24N-D is a programmable audible alarm for indoor and outdoor signaling applications. It uses direct-wire control with wire lead connections and operates on 12 to 24V DC. The unit has a dark gray housing, selectable volume, pulse sound continuity, and tone-style output with up to 15 sound patterns. Message rewriting and extended playback provide alert configuration options.
Key Features:
- Maximum alarm volume: 87 dB at 1 m
- Operating voltage: 12 to 24V DC
- Operating current: 0.146 A at 12 to 24V DC
- Power consumption: 3.5 W
- Mounting styles: flush mount or surface mount
- Mounting hardware included
- Connection and control: wire leads with direct-wire control protocol
- Sound options: 15 sound patterns, pulse sound continuity, tone sound style, and selectable volume
- Construction: PC material with dark gray finish
- Ingress protection: IP54
- Operating temperature range: -10°C to 50°C
- Overall size: 75 mm length x 75 mm width x 19 29/32 mm depth
- Standards: CE, RoHS, UL Listed
- Vibration feature: none
- Features: extended playback, message rewriting, 19 29/32 mm depth
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.57
- Package Width: 3.54
- Package Height: 3.54
- Package Weight: 0.31
