Audible Alarm, Flush Mount, 95 dB, Pulse Tone, 12 to 24V DC, Light Gray, Indoor/Outdoor MPN:BKV-31JF-J
The PATLITE Audible Alarms offer a versatile solution for various applications, from industrial settings to public spaces. With binary input and up to 31 message options, users can customize the alarm system to suit their needs. The device features multiple playback modes, allowing for adaptability to different scenarios. An SD card enables easy message changes without requiring device dismounting, reducing maintenance time. The alarms are built with CE and RoHS compliant technology, ensuring reliability and environmental responsibility. Ideal for applications such as emergency response, public address systems, and industrial warning systems, PATLITE Audible Alarms provide a reliable and customizable solution.
Top product features:
- Binary Input allows for the selection of up to 31 messages.
- Several playback modes are available for various applications.
- The use of an SD card enables message changes without dis-mounting the device.
Top product applications:
- Industrial Settings
- Emergency Evacuation Procedures
- Public Information Systems

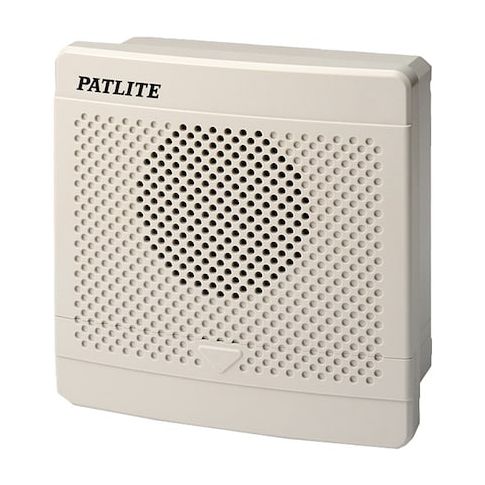

PATLITE BKV-31JF-J is a direct-wire audible alarm for indoor and outdoor signaling applications. It operates on 12 to 24V DC, delivers up to 95 dB at 1 m, and features selectable volume with pulse tone output. The unit has a light gray ABS housing, a flush-mount design, and includes mounting hardware. It also supports message selection through standard binary input, with message changes available by SD card without removing the device.
Key Features:
- Alarm volume: up to 95 dB at 1 m for audible notification
- Power and operation: 12 to 24V DC, 0.209 A at 12 to 24V DC, 5 W
- Connection and control: screw terminal connection with direct-wire control protocol
- Sound output: pulse sound continuity with tone sound style and selectable volume
- Message functions: binary input for selecting up to 31 messages
- multiple playback modes supported
- Message updates: SD card supports message changes without removing the device
- Construction: ABS housing, light gray
- Mounting: flush mount
- mounting hardware included
- Ingress protection: IP54
- Installation location: indoor and outdoor
- Operating temperature: -10°C to 50°C
- Overall size: 120 mm length, 120 mm width, 62 13/16 mm depth
- Standards: CE, MPEG Layer-3 Audio Coding Technology, RoHS
- Vibration function: none
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.51
- Package Width: 5.51
- Package Height: 3.94
- Package Weight: 0.99
