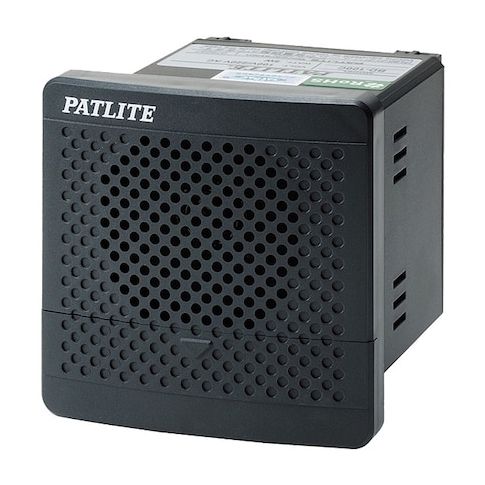

Audible Alarm, Flush Mount, 87 dB, Pulse Tone, 100 to 220V AC, Dark Gray, Indoor/Outdoor MPN:BDV-15KF-K
The PATLITE Audible Alarms offer a versatile and reliable solution for various applications, including industrial, commercial, and public spaces. With binary input as a standard option, users can select up to 15 messages to suit their needs. The device supports multiple playback modes, allowing for customization to specific applications. The use of an SD card enables easy message changes without dismounting the device, reducing downtime and increasing efficiency. Standards-compliant with MPEG Layer-3 audio coding technology, these alarms meet the highest standards for quality and reliability, making them an ideal choice for a wide range of industries and uses.
Top product features:
- Binary Input allows selection of up to 15 messages.
- Several Playback Modes are available for various applications.
- The use of an SD Card allows message changes without dis-mounting the device.
Top product applications:
- Industrial settings
- Security systems
- Public address systems
PATLITE BDV-15KF-K is a dark gray audible alarm with tone output for signaling applications within the product’s IP54 rating and specified operating temperature range. It operates on 100 to 220V AC with direct-wire control and screw terminal connections, and it supports message selection and playback functions for audible notification.
Key Features:
- Alarm volume: 87 dB maximum at 1 m.
- Sound output: Pulse tone with selectable volume.
- Message functions: Binary input for selecting up to 15 messages
- several playback modes are available.
- Input support: Supports input selection using NPN open-collector transistor.
- SD card capability for message changes.
- Electrical ratings: 100 to 220V AC, 5 W, operating current 0.025 A at 220V AC and 0.055 A at 100V AC.
- Construction and mounting: ABS housing, flush mount, mounting hardware included.
- Protection and operating range: IP54
- operating temperature -10 degrees C to 50 degrees C.
- Size: 80 mm length, 80 mm width, 94 11/16 mm depth.
- Standards: MPEG Layer-3 Audio Coding Technology, RoHS.
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.94
- Package Width: 3.94
- Package Height: 5.12
- Package Weight: 0.70
