Audible Alarm, 24V DC, 90 dB, Tone, LED Rotating Blue Beacon, Surface Mount, 3 15/16 in MPN:RFT-24E-B
Elevate your industrial and commercial settings with PATLITE's Audible Alarms, designed to provide clear and reliable notification in high-stress environments. These alarms can be used in various applications, including industrial machinery, elevator systems, and emergency response situations. By providing a loud and attention-grabbing sound, they help prevent accidents, reduce downtime, and enhance overall safety. With their compact design and durable construction, PATLITE's Audible Alarms are ideal for use in factories, warehouses, and other industrial settings where clear communication is crucial. They can be easily integrated into existing systems, making them a versatile and effective solution for a wide range of industries.
Top product features:
- Audible alarms provide immediate notification of a condition or event.
- The product emits sound to alert users of a problem or status change.
- The audible alarm is designed to be heard in a variety of environments.
Top product applications:
- Industrial Equipment Monitoring
- Emergency Response Systems
- Factory Floor Warning Systems

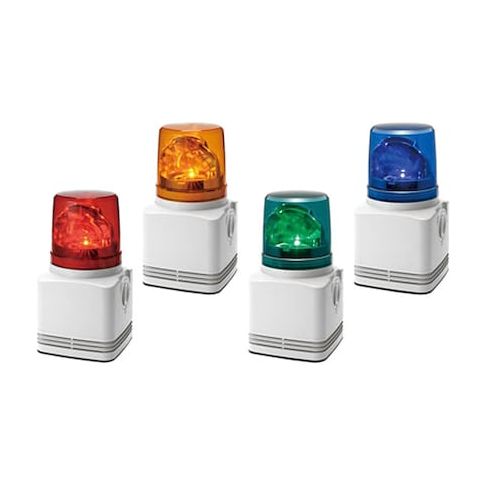

PATLITE RFT-24E-B is an audible and visual signaling device with a blue dome lens, rotating LED light, and tone alarm output. It mounts to a surface for facility and equipment signaling indication. The unit operates on 24V DC, has selectable volume, and provides a maximum alarm output of 90 dB. Rated IP54
- use in conditions consistent with the product’s stated enclosure rating and operating temperature range.
Key Features:
- Audible and visual signaling device with tone sound style and rotating LED light
- Maximum alarm output: 90 dB
- 32 sound patterns with selectable volume and side panel volume adjustment access
- Blue polycarbonate resin dome lens with fixed brightness and 2,000 cd light intensity
- Flash rate: 115 flashes per minute
- Direct wire control with wire leads connection
- Compatible with NPN open-collector transistor inputs
- One sound group is configurable using an SD card and pre-installed sounds
- ABS gray housing, surface mount design, IP54 rated
- Operating temperature range: -10 Degrees C to 50 Degrees C
- Overall size: 3 15/16 in dia. x 8 15/32 in L
- Standards: CE, UL Listed
- Wattage: 12 W
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.14
- Package Width: 4.92
- Package Height: 4.92
- Package Weight: 2.54
