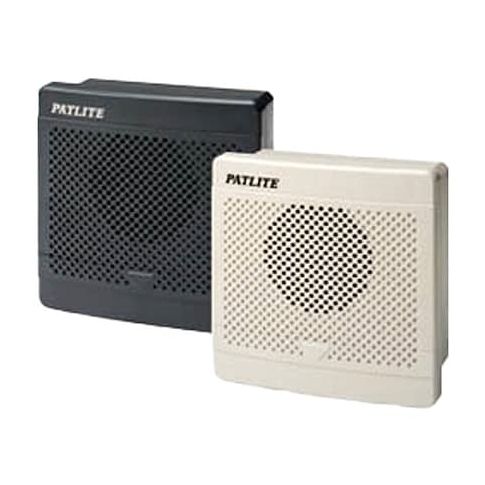

Audible Alarm, 95 dB, Pulse Tone, Flush Mount, ABS Housing, Dark Gray, 100V AC, Indoor/Outdoor MPN:BKV-31KF-K
The PATLITE Audible Alarms feature binary input as a standard option, allowing for up to 31 customizable messages to be selected. Multiple playback modes cater to various applications, ensuring seamless integration in diverse settings. The use of an SD card enables message updates without device dismounting, reducing downtime and increasing flexibility. Utilizing MPEG Layer-3 audio coding technology, these alarms provide clear and high-quality sound. Suitable for industrial, commercial, or residential use, PATLITE Audible Alarms are ideal for applications such as security systems, emergency notifications, and public address systems, providing reliable and customizable audible alerts.
Top product features:
- Binary Input as a Standard Option for Selecting upto 31 Messages
- Several Playback Modes are Available for Various Applications
- The use of an SD Card Allows Message Changes without Dis-Mounting the Device
Top product applications:
- Several Playback Modes are Available for Various Applications
- The use of an SD Card Allows Message Changes without Dis-Mounting the Device
- Standards MPEG Layer-3 Audio Coding Technology
PATLITE BKV-31KF-K is a flush-mount audible alarm for audible signaling applications in environments consistent with its IP54 rating and operating temperature range. It delivers up to 95 dB at 1 m, uses direct-wire control with screw terminal connections, and includes binary input for selecting up to 31 messages. The unit also supports message updates by SD card.
Key Features:
- Audible output: up to 95 dB at 1 m.
- Message capability: binary input is included as a standard option for selecting up to 31 messages.
- Playback options: multiple playback modes are available.
- Message updates: SD card support for message updates.
- Electrical rating: 100V AC operating voltage, 0.07 A operating current, 7 W.
- Mounting and connection: flush-mount design with screw terminal connection
- mounting hardware included.
- Construction: ABS housing in dark gray.
- Protection rating: IP54.
- Operating temperature: -10°C to 50°C.
- Sound type: pulse tone with selectable volume.
- Standards: MPEG Layer-3 Audio Coding Technology, RoHS.
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.51
- Package Width: 5.51
- Package Height: 3.94
- Package Weight: 0.99
