Audible Alarm/LED Beacon, Surface Mount, Amber/Gray, 24V DC, 90 dB, 3-15/16 in Dia. MPN:RFT-24E-Y
Elevate your safety and security with PATLITE's Audible Alarms, designed to alert and inform in high-stakes situations. Perfect for industrial, commercial, and residential applications, these alarms can be used to signal emergencies, warn of potential hazards, or simply provide a clear audible indication of a specific event. With their compact design and robust construction, PATLITE's Audible Alarms are ideal for use in a variety of settings, including manufacturing facilities, warehouses, offices, and more. Their reliable operation ensures that critical messages are conveyed clearly and consistently, helping to prevent accidents and promote a safer working environment.
Top product features:
- Audible alarms provide clear and distinct notification of events or conditions.
- The alarms are designed to be heard in a variety of environments, ensuring that users can respond promptly to important signals.
- The alarms can be customized to meet specific needs, allowing users to tailor the sound and volume to suit their requirements.
Top product applications:
- Industrial Settings
- Warehouse Alarms
- Emergency Response Systems

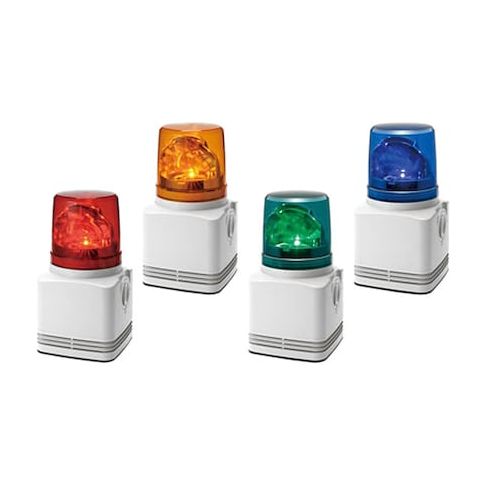

PATLITE RFT-24E-Y is an audible and visual signaling device with a rotating amber LED light and selectable tone alarm. It is rated for indoor and outdoor locations and operates on 24V DC with direct-wire control through wire leads. The unit has a rated alarm output of 90 dB maximum and 3,000 cd light intensity in a surface-mount housing.
Key Features:
- Audible and visual signaling: tone alarm with rotating amber LED light for warning indication.
- Alarm output: 90 dB maximum at 1 m and 90 dB maximum at 10 ft.
- Sound options: 32 sound patterns with selectable volume.
- Light output: 115 flashes per minute with fixed brightness and 3,000 cd light intensity.
- Control and connection: direct-wire control with wire leads
- supports NPN open-collector transistor inputs.
- Customization: one sound group can be rearranged using an SD card with pre-installed sounds.
- Housing and lens: gray ABS housing with a dome-shaped amber lens made of polycarbonate resin.
- Installation and use: surface-mount design rated for indoor and outdoor locations.
- Electrical and operating range: 24V DC, 12 W, operating temperature range of -10°C to 50°C.
- Protection and standards: IP54, CE, UL Listed.
- Dimensions: 3 15/16 in. overall diameter and 8 15/32 in. overall length.
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.14
- Package Width: 4.92
- Package Height: 4.92
- Package Weight: 2.54
