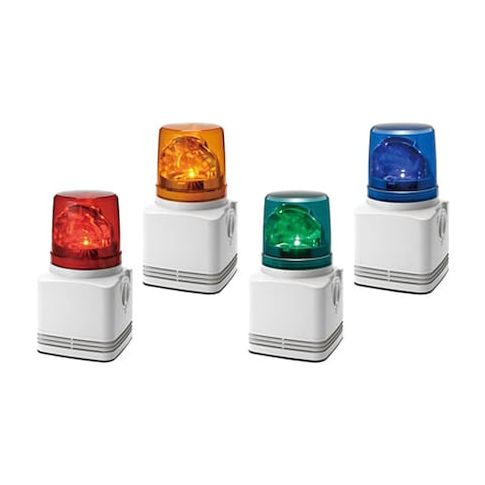

Audible Alarm with LED Signal, Red Rotating Light, 24V DC, 90 dB, Surface Mount, 3 15/16 in MPN:RFT-24E-R
Enhance your facility's safety and efficiency with PATLITE's Audible Alarms. These reliable alarms are designed to alert personnel to important events, reducing response times and improving overall safety. Perfect for use in industrial, commercial, or residential settings, PATLITE's audible alarms can be used to signal alarms, warnings, or notifications. Their compact design and durable construction make them easy to install and maintain, while their clear and loud sound ensures that messages are conveyed effectively. Ideal for applications such as machine monitoring, fire alarms, or security systems, PATLITE's Audible Alarms are a valuable addition to any facility.
Top product features:
- Audible alarms provide a loud and attention-grabbing notification when triggered.
- The alarms are designed to be heard from a distance, ensuring users are alerted even in noisy environments.
- The alarms are programmable, allowing users to customize their notification settings to suit their specific needs.
Top product applications:
- Industrial Safety Systems
- Facility Monitoring Systems
- Security Alarm Systems
PATLITE RFT-24E-R is a surface-mount audible and visual signaling device with a red dome lens and LED rotating light. It operates on 24V DC and combines a tone alarm with visual indication for use in conditions consistent with its IP54 rating and specified operating temperature range. The unit supports direct-wire control and is suited for installations using a wired audible and visual signaling device with selectable volume and multiple sound patterns.
Key Features:
- Alarm volume: 90 dB maximum at 1 m and 90 dB maximum at 10 ft.
- Visual signal: red polycarbonate resin dome lens with LED light source and rotating light operating mode.
- Light intensity: 3,000 cd with a flash rate of 115 flashes per minute.
- Sound options: tone-style alarm with 32 sound patterns.
- Volume control: selectable volume with side-panel access for adjustment.
- Control and connection: direct-wire control with wire leads
- compatible with NPN open-collector transistor inputs.
- Customization: supports customization of one sound group using pre-installed sounds via SD card.
- Construction: gray ABS housing with IP54 rating.
- Mounting and size: surface-mount design
- 3 15/16 in. overall diameter and 8 15/32 in. overall length.
- Operating range: -10°C to 50°C.
- Electrical: 24V DC, 12 W.
- Standards: CE, UL Listed.
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.14
- Package Width: 4.92
- Package Height: 4.92
- Package Weight: 2.54
