Audible Alarm, Buzzer, Pulse, Flush Mount, 24V AC/DC, 75 dB, Black, Indoor/Outdoor MPN:BM-202D
The PATLITE Audible Alarm is a compact and lightweight solution for alerting individuals to important events. Compatible with 24V systems, this alarm is perfect for use in industrial, commercial, or residential settings where a reliable and audible warning is crucial. Its NPN/PNP compatibility ensures seamless integration with various control systems, making it an ideal choice for applications such as machinery monitoring, safety alerts, or emergency notification. With its CE certification and durable design, this alarm provides a reliable and effective way to ensure safety and efficiency in a wide range of environments.
Top product features:
- Compact and Lightweight Body
- NPN/PNP Compatible: 24V Type Only
- Audible Alarm
Top product applications:
- Industrial Automation
- Emergency Response Systems
- Medical Equipment Monitoring

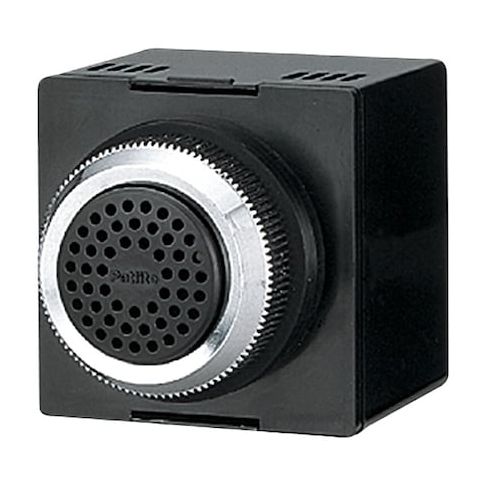

PATLITE BM-202D is a direct-wire audible alarm for indoor and outdoor signaling applications. This black ABS unit produces a pulsed buzzer sound with 2 sound patterns and a maximum alarm volume of 75 dB at 1 meter. The 50 mm overall length x 50 mm overall width x 64 mm overall depth ABS housing is configured for flush-mount panel installation.
Key Features:
- Sound Output: Pulsed buzzer alarm with a maximum volume of 75 dB at 1 meter.
- Sound Patterns: 2 selectable sound patterns.
- Electrical Rating: 24V AC/DC.
- Current Draw: 0.167 A at 24V AC/DC.
- Power Rating: 0.4 W.
- Connection Type: Screw terminal wiring with direct-wire control protocol.
- Mounting Style: Flush mount
- mounting hardware included.
- Construction: Black ABS housing.
- Compatibility: NPN/PNP compatible on 24V type only.
- Protection Rating: IP34.
- Operating Temperature: -10 degrees C to 60 degrees C.
- Installation Location: Indoor and outdoor.
- Dimensions: 50 mm overall length, 50 mm overall width, 64 mm overall depth.
- Standards: CE.
- Volume Selection: Fixed volume.
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.36
- Package Width: 2.36
- Package Height: 3.15
- Package Weight: 0.27
