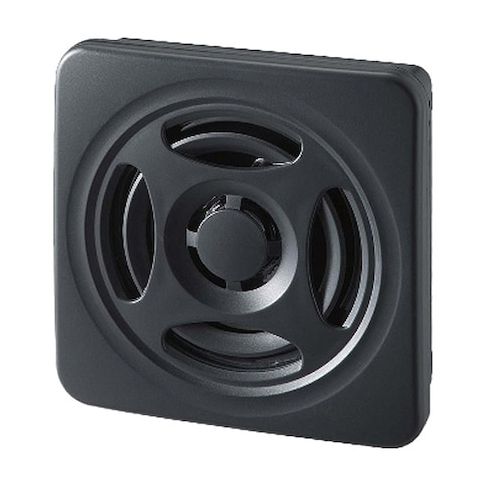

Audible Alarm, 87 dB, Pulse Tone, 12 to 24V DC, Indoor/Outdoor, Dark Gray MPN:BSV-24P-D
The PATLITE Audible Alarm is a reliable and compact solution for alerting individuals to potential hazards or critical events. Its easy installation and extended playback capabilities make it an ideal choice for a variety of applications, including industrial settings, emergency response systems, and public safety announcements. With its thin design and durable construction, this alarm can be easily integrated into any environment, providing clear and effective communication. Whether used in a factory, hospital, or public space, the PATLITE Audible Alarm helps ensure a safe and informed community, meeting essential standards for CE, RoHS, and UL Listed certifications.
Top product features:
- Easy Installation
- Extended Playback
- Message Rewriting
Top product applications:
- Industrial Automation
- Factory Floor Monitoring
- Emergency Evacuation Systems
PATLITE BSV-24P-D is a dark gray audible alarm for indoor or outdoor signaling applications. This direct-wire unit operates on 12 to 24V DC and produces pulsed tone alerts with selectable volume up to 87 dB at 1 m. Its thin design, extended playback, and message rewriting capability support installations where an audible signaling device is specified.
Key Features:
- Sound output: Pulse tone alarm with 15 sound patterns and selectable volume up to 87 dB at 1 m.
- Electrical rating: Operates on 12 to 24V DC, 3.5 W, with operating current of 0.146 A at 12 to 24V DC.
- Mounting and connection: Supports flush-mount or surface-mount installation and uses wire leads for connection.
- Construction: PC housing in a dark gray finish with mounting hardware included.
- Ingress protection: IP54 rated for indoor and outdoor use.
- Operating temperature: -10°C to 50°C.
- Control protocol: Direct wire.
- Standards: CE, RoHS, UL Listed.
- Design features: Thin design, extended playback, and message rewriting.
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.57
- Package Width: 3.54
- Package Height: 3.54
- Package Weight: 0.31
