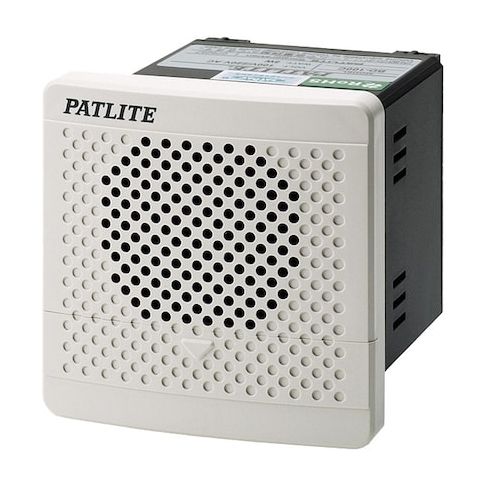

Audible Alarm, Flush Mount, 87 dB, Pulse Tone, 100 to 220V AC, Light Gray, Indoor/Outdoor MPN:BDV-15KF-J
Elevate your warning and alert systems with PATLITE's Audible Alarms, featuring binary input for up to 15 customizable messages and multiple playback modes for diverse applications. This robust device supports NPN open-collector transistor input selection and utilizes SD cards for effortless message updates without device dismounting. With MPEG Layer-3 audio coding technology, these alarms provide clear and crisp sound, meeting RoHS standards. Suitable for industrial settings, public facilities, and emergency response systems, PATLITE's Audible Alarms ensure timely and effective communication, enhancing safety and efficiency in various environments.
Top product features:
- Binary Input allows selection of up to 15 messages.
- Several playback modes are available for various applications.
- The device supports input selection using NPN open-collector transistor.
Top product applications:
- Industrial settings
- Public address systems
- Emergency response systems
PATLITE BDV-15KF-J is an audible alarm rated for indoor and outdoor use. It operates on 100 to 220V AC with direct-wire control and screw terminal connections. The unit produces a pulsed tone with selectable volume up to 87 dB at 1 m and supports message selection and playback through standard binary input and SD card-based message changes.
Key Features:
- - Audible alarm with tone sound style and pulse sound continuity
- - Selectable volume with a maximum sound level of 87 dB at 1 m
- - Operating voltage: 100 to 220V AC
- - Power consumption: 5 W
- - Operating current: 0.025 A at 220V AC
- 0.055 A at 100V AC
- - Direct-wire control with screw terminal connection
- - Standard binary input for selecting up to 15 messages
- - Several playback modes available
- - Supports input selection using NPN open-collector transistor
- - SD card supports message changes while the device remains mounted
- - Light gray ABS housing
- - Flush-mount installation with mounting hardware included
- - Protection rating: IP54
- - Operating temperature: -10°C to 50°C
- - Rated for indoor and outdoor use
- - MPEG Layer-3 Audio Coding Technology
- RoHS
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.94
- Package Width: 3.94
- Package Height: 5.12
- Package Weight: 0.70
