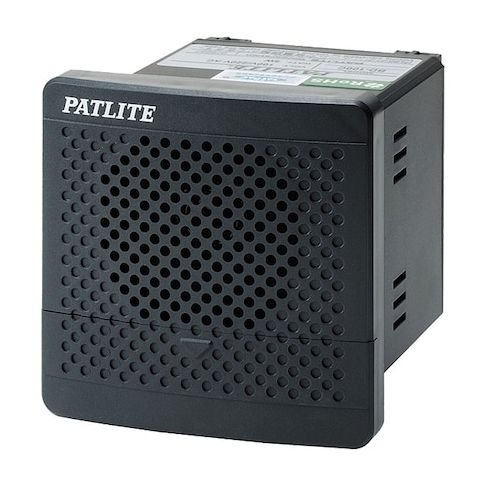

Audible Alarm, Flush Mount, 12 to 24V DC, 90 dB, Pulse Tone, Dark Gray, Indoor MPN:BD-24AE-K
The PATLITE Audible Alarms offer flexible and reliable sound selection for a variety of applications. With the ability to select one sound group from A to P to playback 4 pre-recorded sounds, users can easily customize their alarm system to suit their needs. The sound output level and sound group can be adjusted using rotary switches stored behind the front panel, allowing for easy operation even after installation. Suitable for use in industrial, commercial, or residential settings, these alarms provide a reliable and customizable solution for warning and alerting individuals in emergency situations.
Top product features:
- Select One Sound Group from A to P to Playback 4 Pre-Recorded Sounds
- Sound Output Level can be Selected by Rotary Switches
- Stored Behind the Front Panel for Easier Operation Even After Installation
Top product applications:
- Industrial alarm systems
- Security systems
- Manufacturing automation
PATLITE BD-24AE-K is an indoor audible alarm for direct-wire signaling applications. It operates on 12 to 24V DC and produces pulsed tone alerts with up to 32 sound patterns. The unit supports selection of one sound group from A to P to play back 4 pre-recorded sounds for direct-wire signaling applications requiring selectable audible signal patterns in a flush-mount design.
Key Features:
- Maximum alarm volume: 90 dB at 1 m.
- Sound configuration: select one sound group from A to P to play back 4 pre-recorded sounds.
- Volume and sound group selection: adjustable by rotary switches behind the front panel.
- Operating voltage: 12 to 24V DC.
- Operating current: 0.17 A at 12 to 24V DC.
- Power rating: 4 W.
- Mounting style: flush mount
- mounting hardware included.
- Connection type: screw terminal.
- Enclosure material and color: ABS, dark gray.
- Ingress protection: IP54.
- Operating temperature range: -20°C to 55°C.
- Overall size: 80 mm length, 80 mm width, 94 11/16 mm depth.
- Standards: CE, cUL Component Recognition (Canada), RoHS, UL Component Recognition (US).
- Vibration function: none.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.74
- Package Width: 3.74
- Package Height: 4.72
- Package Weight: 0.59
