Audible Alarm, Flush Mount, 90 dB, Pulse Tone, 12 to 24V DC, Indoor, Light Gray MPN:BD-24AE-J
The PATLITE Audible Alarm is a versatile and user-friendly solution for a variety of applications, including industrial, commercial, and residential settings. With the ability to select from 26 different sound groups and playback four pre-recorded sounds, this alarm can be tailored to meet specific needs. Its compact design and rotary switches make it easy to operate, even after installation. The alarm meets international safety standards and is compatible with a range of industries, including healthcare, manufacturing, and transportation. Its reliable and durable design ensures consistent performance and long-lasting use.
Top product features:
- Select One Sound Group from A to P to Playback 4 Pre-Recorded Sounds
- Stored Behind the Front Panel for Easier Operation Even After Installation
- Sound Output Level can be Selected by Rotary Switches
Top product applications:
- Industrial warning systems
- Security systems for commercial properties
- Emergency response systems for public facilities

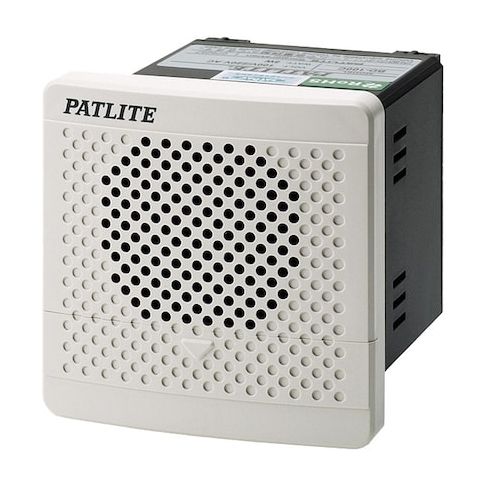

PATLITE BD-24AE-J is an indoor audible alarm for direct-wire installation. It produces pulsed tone alerts with selectable volume and supports playback of 32 sound patterns for audible status-change, warning, and notification signaling in facility and worksite applications.
Key Features:
- Maximum alarm volume: 90 dB at 1 m
- 32 sound patterns with 4 pre-recorded sounds selectable from sound groups A to P
- Sound output level and sound group are selected by rotary switches behind the front panel
- Operating voltage: 12 to 24V DC
- Operating current: 0.17 A at 12 to 24V DC
- Power consumption: 4 W
- Connection type: screw terminal
- Control protocol: direct wire
- Power source: wire
- Mounting style: flush mount
- Mounting hardware included
- Housing material: ABS
- Color: light gray
- IP54 rated for indoor use
- Operating temperature range: -20°C to 55°C
- Overall size: 80 mm L x 80 mm W x 94 11/16 mm D
- Standards: CE, cUL Component Recognition (Canada), RoHS, UL Component Recognition (US)
- Vibration function: none
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.74
- Package Width: 3.74
- Package Height: 4.72
- Package Weight: 0.59
