Audible Alarm/Signal Light, 24V DC, Green Dome Lens, 90 dB, Surface Mount, Indoor/Outdoor MPN:RFT-24E-G
The Audible Alarms from PATLITE are designed to provide clear and effective notification in a variety of industrial and commercial settings. These alarms can be used to alert personnel of potential hazards, signal the need for maintenance, or indicate the completion of a process. With their loud and attention-grabbing sound, they can be heard from a distance, ensuring that important information is conveyed quickly and efficiently. Suitable for use in factories, warehouses, and other high-noise environments, these alarms are a reliable and essential tool for maintaining a safe and productive workplace.
Top product features:
- Audible alarms provide a clear and attention-grabbing notification for critical events.
- The unit has a compact design that allows for easy installation in a variety of settings.
- The alarm has a long audible range, ensuring that users can hear notifications from a distance.
Top product applications:
- Factory production line monitoring
- Warehouse inventory tracking
- Emergency response systems in hospitals

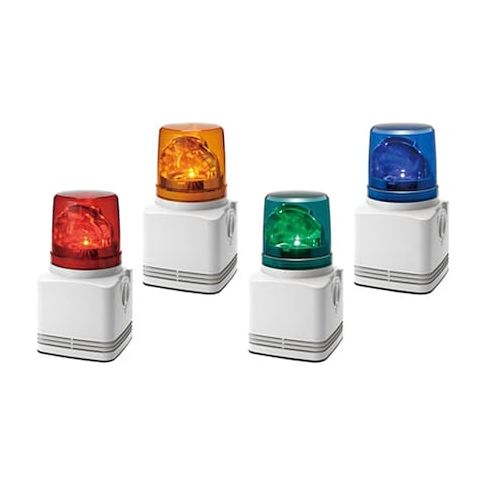

PATLITE RFT-24E-G is an audible and visual signaling device with a green dome lens, rotating LED light, and tone alarm output. Intended for indoor and outdoor installations as specified by the manufacturer, it operates on 24V DC and mounts to a surface for direct-wired installation. The unit features selectable volume with a maximum alarm level of 90 dB and supports 32 sound patterns for signaling and status indication.
Key Features:
- Audible output: tone sound style with selectable volume
- maximum alarm volume is 90 dB at 1 m and 90 dB at 10 ft.
- Visual signal: green polycarbonate resin dome lens with rotating LED light output rated at 2,500 cd.
- Flash rate: 115 flashes per minute.
- Electrical: 24V DC operation, direct wire control protocol, wire leads connection, 12 W.
- Sound options: 32 sound patterns.
- Housing: gray ABS housing.
- Ingress protection: IP54.
- Mounting: surface mount.
- Operating temperature range: -10 degrees C to 50 degrees C.
- Dimensions: 3 15/16 in overall diameter
- 8 15/32 in overall length.
- Standards: CE, UL Listed.
- Additional features: side panel access for volume adjustment
- compatible with NPN open-collector transistor inputs
- one sound group can be rearranged using an SD card with pre-installed sounds.
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.14
- Package Width: 4.92
- Package Height: 4.92
- Package Weight: 2.54
