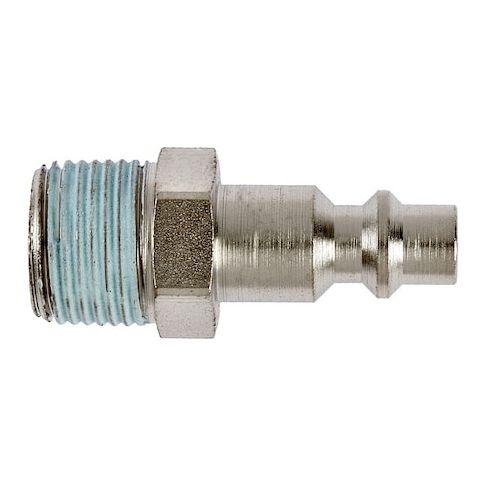

Quick Connect Plug, Industrial Interchange, 1/4 in Male NPTF, 1/8 in Body, Brass, Nickel Plated MPN:21SFAN13MXN
The Parker 21SFAN13MXN Quick Connect Socket is a reliable and efficient solution for connecting hoses, tools, and equipment in industrial settings. Its push-to-connect mechanism and spring-loaded release sleeve enable easy connection and disconnection without the need for tools, reducing downtime and increasing productivity. Constructed from brass with a nickel-plated finish, this socket withstands high pressures and temperatures, making it ideal for applications such as pneumatic systems, air tools, and hydraulic equipment. Its compact design and industrial interchange compatibility make it a versatile choice for various industries, including manufacturing, construction, and maintenance.
Top product features:
- Push-to-connect mechanism for easy connection and disconnection without tools
- Spring-loaded release sleeve for secure and quick release of the coupling
- Ball locking mechanism for a secure and reliable connection
Top product applications:
- Air compressor systems
- Pneumatic tool applications
- Industrial air supply systems
The PARKER - 21SFAN13MXN is a quick connect socket (female half of a quick-connect coupling system) for use with compatible quick-connect plugs to connect hoses/tools/equipment in accordance with the manufacturer’s ratings. It features a push-to-connect mechanism and a spring-loaded release sleeve for connection/disconnection without tools (when used with compatible components). The socket is constructed from brass with a nickel-plated finish, for use with compatible quick-connect plugs within the specified coupling requirements and ratings. It accommodates a hose fitting size of 1/4 inch and has a nominal body size for quick connect air couplings of 1/8 inch.
Key Features:
- - Connection Type: 1/4"-18 NPTF thread with male hose fitting gender.
- - Material: Brass body with nickel-plated finish for brass body with nickel-plated finish (nickel-plated for corrosion/surface finish per published specification)
- - Seal Material: Nitrile (Buna-N)
- - Coupling Locking Type: Ball locking mechanism.
- - Maximum working pressure at 70°F: 250 psi (per published specifications).
- - Maximum air flow rate: 12 scfm (per published specifications).
- - Overall Length: 1.25 inches.
- - Max Outside Diameter: 5/8 inch across widest point.
- - Operating temperature range: -4°F to 212°F (per published specifications).
- - Includes: Locking balls and valve spring components.
- - Industry Standards: A-A-59439
- ISO 6150-B
- MIL-C-4109F.
- - Interchange Type: Industrial Interchange compatible.
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 4.38
- Package Width: 2.62
- Package Height: 1.75
- Package Weight: 0.42
