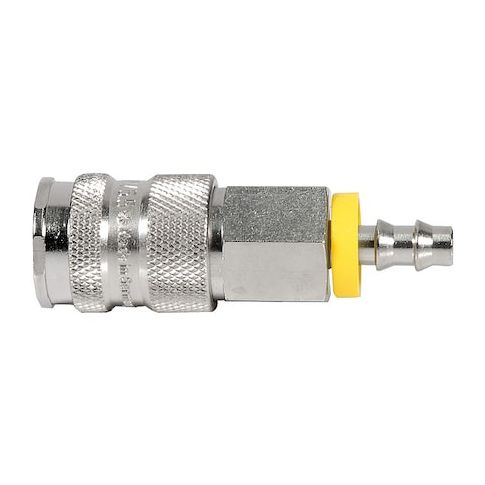

Quick Connect Socket, Industrial Interchange, 1/4 in Hose Barb x 1/4 in Body, Brass, Valve MPN:23KATP06MPN
The Parker 23KATP06MPN Quick Connect Socket is a reliable and efficient solution for pneumatic and fluid applications. Designed for use with Industrial Interchange system plugs and sockets, this brass socket features a hose barb connection for 1/4 in hose inner diameter and a poppet valve mechanism to reduce leakage during connection and disconnection. Its nitrile seal and spring-loaded release sleeve ensure secure and leak-free connections. Suitable for a wide range of applications, including industrial manufacturing, laboratory settings, and medical facilities, this quick connect socket provides a fast and easy way to connect and disconnect hoses, improving productivity and reducing downtime.
Top product features:
- Brass construction for the body provides durability and resistance to corrosion.
- Hose barb connection suitable for 1/4 in hose inner diameter allows for easy and secure attachment of hoses.
- Spring-loaded release sleeve enables push-to-connect hookup and disconnection with reduced leakage.
Top product applications:
- Pneumatic applications
- Fluid applications
- Industrial Interchange system
The PARKER - 23KATP06MPN is a quick connect socket for use with a nitrile seal and a poppet valve mechanism at the specified maximum working pressure and operating temperature ranges. This brass socket includes a spring-loaded release sleeve and an internal poppet valve mechanism intended to reduce leakage during connection and disconnection. It features a hose barb connection suitable for 1/4 in hose inner diameter and is compatible with push-to-connect hookup and disconnection using the provided spring-loaded release sleeve. It is rated for use with Industrial Interchange system plugs and sockets that are dimensionally compatible, for pneumatic applications and fluid applications, as permitted by the specified pressure and temperature ratings.
Key Features:
- - Material: Brass construction for the body.
- - Connection Type: Hose Barb with 1/4 in barb size and hose fitting size.
- - Includes Valve: Yes, using a poppet valve mechanism.
- - Coupling Locking Type: Ball locking for secure engagement.
- - Seal Material: Nitrile provides sealing at connection points.
- - Maximum Flow Rate: Maximum flow rate: rated up to 36.5 scfm.
- - Interchange Type: Industrial Interchange compatible.
- - Includes Components: [omit from description]
- - Maximum Outside Diameter: 1 in.
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 35 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 4.38
- Package Width: 2.62
- Package Height: 1.75
- Package Weight: 2.21
