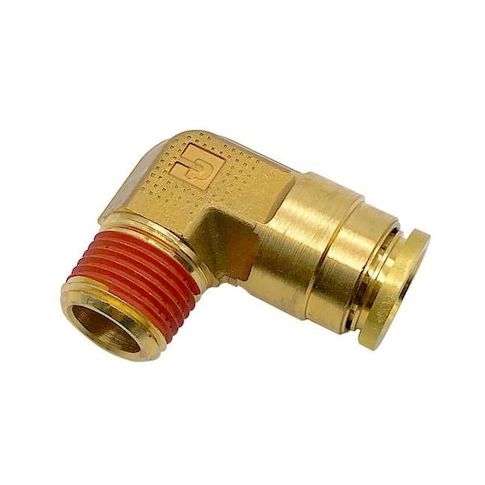

Brass DOT Push-to-Connect Fitting, Brass, Silver MPN:VS169PTCNS-12-8
Brass DOT Push-to-Connect Fitting, Brass, Silver
This Brass DOT Push-to-Connect Fitting from Parker is a reliable and efficient solution for various applications, particularly in air systems. Its push-fit design simplifies installation, reducing the risk of leaks and ensuring a secure connection. The fitting's brass material provides excellent durability and resistance to corrosion, while the pre-applied thread sealant ensures a tight seal. Suitable for applications up to 250 psi and 200°F, this fitting is ideal for use in pneumatic systems, HVAC, and industrial processes where quick and easy connections are required. Its compact design also makes it perfect for tight spaces.
Top product features:
- Push-to-Connect design allows for easy and secure connection to the fitting without the need for threading or tools.
- Pre-applied thread sealant provides a reliable and leak-free seal.
- Maximum operating pressure of 250 psi and maximum operating temperature of 200°F enable the fitting to handle high-pressure and high-temperature applications.
Top product applications:
- Air supply lines
- Hydraulic systems
- Compressed air distribution
Push-Fit Elbow Fitting, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 1/2 in, Fitting Side A Tube Outer Diameter 3/4 in, Fitting Material Brass, Fitting Thread Size Not Applicable, Material Grade C36000, Color Gold, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 3 1/16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 1.90
- Package Height: 1.10
- Package Weight: 0.40
