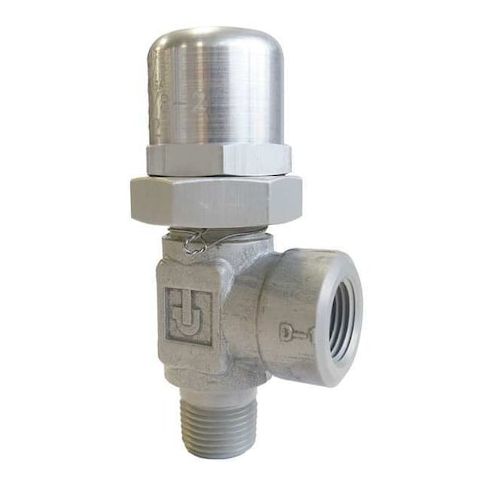

Pressure Control Valve, 1020 psi, 1/4 NPT MPN:642B-8-1/4-2
Pressure Control Valve, 1020 psi, 1/4 NPT
The Parker Pressure Control Valve is a reliable solution for precise pressure management in a variety of industrial applications. With a maximum pressure rating of 1,020 psi and a stainless steel body, this valve is designed to withstand harsh environments and maintain consistent performance. Its adjustable pressure setting and check valve cracking pressure of 850 psi make it ideal for use in water treatment, oil and gas, and other high-pressure systems. The valve's compact size and ease of actuation make it a versatile choice for applications requiring precise pressure control, such as hydraulic systems, pumps, and compressors.
Top product features:
- Pressure Control Valve regulates pressure up to 1020 psi
- Flow Rate is limited to 4 gpm
- Check Valve is triggered at 850 psi
Top product applications:
- Oil and Gas Industry: The pressure control valve is used to regulate and control the pressure of fluids in oil and gas wells, pipelines, and processing equipment.
- Hydraulic Systems: This valve is applied in hydraulic systems to control the pressure and flow rate of hydraulic fluids, such as in construction equipment, industrial machinery, and mobile hydraulics.
- Laboratory and Research: The pressure control valve is used in laboratory settings and research applications to control and measure the pressure of various fluids and gases in experiments and testing equipment.
Pressure Control Valve, Pressure - Maximum 1,020 psi, Flow Rate - Maximum 4 gpm, Body Material Stainless Steel, Pressure - Minimum 630 psi, Port Connection Type NPT, Port Connections Inlet, Outlet, Pressure Setting - Maximum 850 psi, Check Valve Cracking Pressure 850 psi, Overall Width 1.25 in, Port Connection Size 1/4 in, Actuation Mechanism Pressure, Port Connection Dash Size -8, Operating Temperature - Maximum 250 Degrees F, Operating Temperature - Minimum -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 5.20
- Package Height: 6.90
- Package Weight: 1.16
