Metric Metal Push-to-Connect Fitting, Brass, Silver MPN:W171PLP-12M-4R
Metric Metal Push-to-Connect Fitting, Brass, Silver

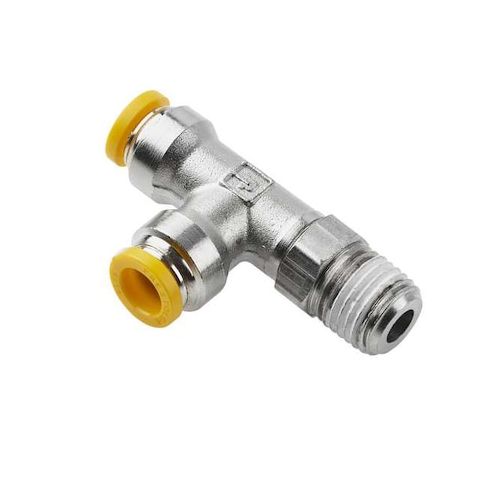

This Metric Metal Push-to-Connect Fitting from Parker is a reliable solution for vacuum applications. Made from high-quality brass, it features a silver finish and push-to-connect connections on sides A and B. The BSPT connection on side C allows for secure connections to pipes and fittings. The pre-applied thread sealant ensures a leak-free seal, even in high-pressure applications up to 300 psi. Suitable for use in harsh environments up to 200°F, this fitting is ideal for use in laboratory equipment, medical devices, and other vacuum-based systems. Its compact design and easy installation make it a convenient choice for a variety of applications.
Top product features:
- Push-to-Connect Connection Type on Fitting Side A and B allows for quick and easy connection and disconnection without the need for tools or threads.
- Pre-Applied Thread Sealant provides a secure and leak-free connection between the fitting and the pipe or tube.
- BSPT Connection Type on Fitting Side C enables connection to standard pipe threads, providing a secure and reliable connection.
Top product applications:
- Vacuum
- Industrial
- Hydraulic
Push-Fit Tee Fitting, Application Vacuum, Color Silver, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type BSPT, Material Grade C37700, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Fitting Side C Pipe Size 1/4 in, Fitting Side B Tube Outer Diameter 12 mm, Fitting Material Brass, Maximum Operating Pressure 300 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 29 5/32 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.60
- Package Height: 0.80
- Package Weight: 0.16
Product info last updated on February 2, 2026 2:51pm UTC
Category: Pipes, Valves and Fittings
