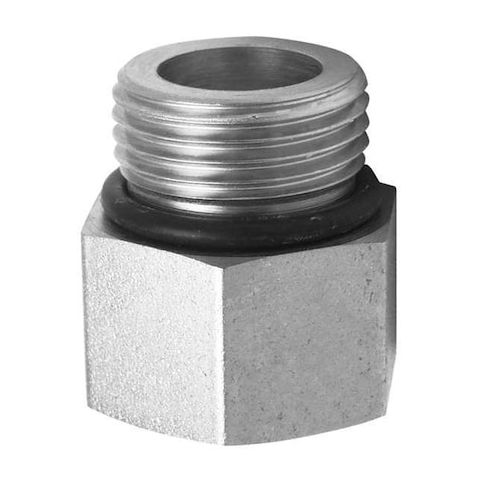

1-5/16-12 x 1" SAE-ORB x FNPT 316 SS Pipe Adapter MPN:16-1 F5OG-SS
This stainless steel pipe adapter from Parker is designed for connecting components with different connection types and thread standards. It features a male SAE-ORB connection on one side and a female NPT connection on the other, making it ideal for industrial and process applications requiring corrosion resistance. The adapter is rated for use with hydraulic fluids at pressures up to 3,600 psi and temperatures between 30°F and 250°F. Its 316 stainless steel construction and nitrile seal ensure reliable performance and long-lasting durability. Suitable for a wide range of applications, this adapter is a versatile solution for any system requiring a secure and leak-tight connection.
Top product features:
- The adapter features a male SAE-ORB connection on Side A with a nominal pipe size of 1 5/16 in.
- The adapter features a female NPT connection on Side B with a nominal pipe size of 1 in.
- The adapter is constructed from 316 stainless steel with a nitrile seal.
Top product applications:
- Industrial applications
- Process applications
- Hydraulic fluid applications
The PARKER - 16-1 F5OG-SS is a stainless steel pipe adapter designed to connect two components with different connection types and thread standards. It features a male SAE-ORB connection on Side A with a nominal pipe size of 1 5/16 in and a female NPT connection on Side B with a nominal pipe size of 1 in. This adapter is rated for use with hydraulic fluids within specified parameters and is suitable for use in industrial and process applications requiring corrosion resistance. The fitting is constructed from 316 stainless steel with nitrile seal
- installation should comply with standard procedures to ensure leak-tight connections.
Key Features:
- - Material: 316 Stainless Steel
- - Application: Hydraulic Fluid
- - Connection types: SAE-ORB (Male) x FNPT (Female)
- - Pipe sizes: 1-5/16"-12 (Side A) x 1" (Side B)
- - Rated for operation at pressures up to 3,600 psi within specified conditions
- - Rated for operation within the temperature range of 30°F to 250°F
- - Seal material: Nitrile
- - Standards: SAE J1926-1, SAE J514
- - Hex size: 1-5/8 in
- - Overall length: 1 7/8 in
- - Includes seal
- application of thread sealant should follow standard practices
- - Number of holes: 2
- - Color: Silver
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.60
- Package Height: 1.40
- Package Weight: 0.45
