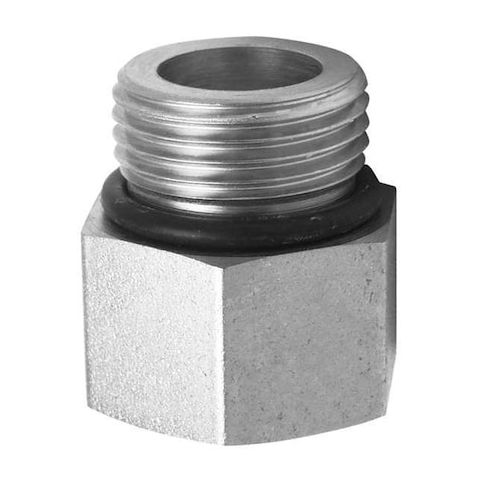

7/16-20 x 1/4" SAE-ORB x FNPT 316 SS Pipe Adapter MPN:4-1/4 F5OG-SS

The PARKER - 4-1/4 F5OG-SS is a stainless steel pipe adapter designed to join two components with different connection types and sizes, featuring a male SAE-ORB connection on one end and a female NPT connection on the other. Constructed from 316 stainless steel, it provides corrosion resistance and is intended for hydraulic fluid applications. The adapter meets SAE J1926-1 and SAE J514 standards and operates within a temperature range of 30 Degrees to 250 Degrees F with a maximum operating pressure of 6,000 psi.

Key Features:

• - Material: 316 stainless steel.
• - Connection types: Male SAE-ORB (7/16 in nominal size) to Female NPT (1/4 in nominal size).
• - Maximum operating pressure: 6,000 psi.
• - Temperature range: 30 Degrees to 250 Degrees F.
• - Includes a nitrile seal.
• - Hex size: 3/4 in across flats for wrenching.
• - Overall length: 1 1/8 in.
• - Designed for hydraulic fluid applications.
