1-7/8-12 x 1" SAE-ORB x FNPT 316 SS Pipe Adapter MPN:20-1 1/4 F5OG-SS

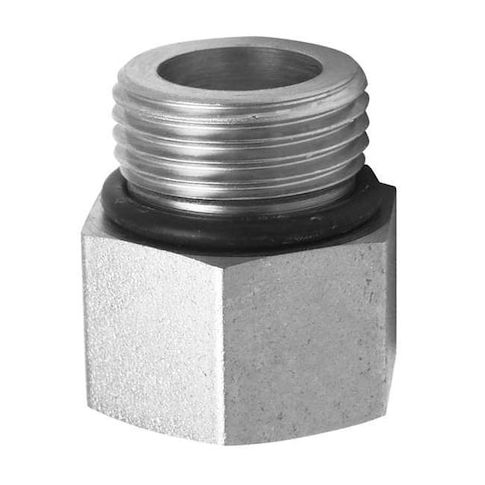

1-7/8-12 x 1" SAE-ORB x FNPT 316 SS Pipe Adapter
The PARKER - 20-1 1/4 F5OG-SS is a stainless steel pipe adapter designed to connect components with different connection types and sizes. Constructed from 316 stainless steel, suitable for industrial process, plumbing, and systems within specified conditions. Featuring SAE-ORB x FNPT connections, this adapter facilitates secure, leak-proof transitions between threaded and socket or flange connections. It can be used in applications involving hydraulic fluids within specified conditions and is rated for operation at pressures up to 3000 psi, making it suitable for demanding industrial systems.
Key Features:- - Material Grade: 316 Stainless Steel – Constructed from 316 stainless steel
- - Max. Pressure: 3000 psi – Rated for operation up to 3000 psi
- - Max. Steam Pressure: 3000 psi – Rated for use with steam within specified temperature and pressure limits
- - Overall Length: 1 15/16 in – Overall length of 1 15/16 inches
- - Fitting Connection Type: SAE-ORB x FNPT – Connects via SAE-ORB and FNPT connection standards
- - Fitting Side A Gender: Male – Features male external threads as specified
- - Fitting Side A Nominal Pipe Size: 1 7/8 in – Designed for connection with nominal pipe size of 1 7/8 inches
- - Fitting Side A Type: SAE-ORB – Conforms to SAE-ORB connection standard
- - Fitting Side B Gender: Female – Features female internal threads as specified
- - Fitting Side B Nominal Pipe Size: 1 in – Designed for connection with nominal pipe size of 1 inch
- - Fitting Side B Type: NPT – Conforms to NPT connection standard
- - Fittings Sub-Category: Adapters – Connects different connection types and sizes
- - Hex Size: 2" – Wrenching surface measurement for installation
- - Includes Seal: Yes – Equipped with sealing components designed for proper installation
- - Standards: SAE J1926-1, SAE J514 – Conforms to SAE J1926-1 and SAE J514 standards
- - Temp. Range: 30° to 250°F – Rated for operation within the temperature range of 30°F to 250°F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.25
- Package Height: 4.20
- Package Weight: 0.75
