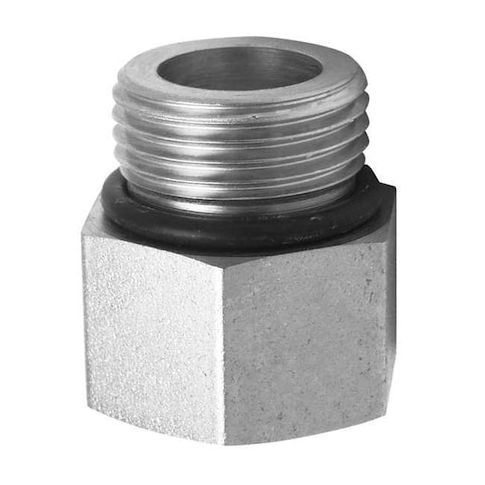

Pipe Adapter, 316 Stainless Steel, 3/4 in Male SAE-ORB x 3/8 in Female NPT, 6, 000 psi MPN:12-3/8 F5OG-SS
The PARKER 12-3/8 F5OG-SS stainless steel pipe adapter connects components with differing connection types or sizes, featuring a male SAE-ORB connection and a female NPT connection. Constructed from corrosion-resistant 316 stainless steel, this adapter is rated for pressures up to 6,000 psi and operates within a temperature range of 30°F to 250°F. Ideal for hydraulic fluid applications, this adapter provides leak-tight connections and meets SAE J1926-1 and SAE J514 standards. Suitable for use in a variety of industries, including aerospace, automotive, and industrial manufacturing, this adapter ensures reliable and efficient fluid transfer and connection in high-pressure applications.
Top product features:
- Material: 316 stainless steel with a nitrile seal included for leak-tight connections.
- Connections: Male SAE-ORB x Female NPT, with nominal sizes 3/4 in and 3/8 in respectively.
- Rated for operation at pressures up to 6,000 psi within specified temperature range.
Top product applications:
- Hydraulic System Connectors
- Hydraulic Pneumatic System Components
- Industrial Fluid Power Equipment
The PARKER - 12-3/8 F5OG-SS is a stainless steel pipe adapter designed to connect two components with differing connection types or sizes. It features a male SAE-ORB connection of 3/4 in nominal pipe size on one end and a female NPT connection of 3/8 in nominal pipe size on the other. Constructed from 316 stainless steel, this adapter is rated for use with hydraulic fluid within specified parameters
- constructed from corrosion-resistant stainless steel and rated for pressures up to 6,000 psi. It conforms to SAE J1926-1 and SAE J514 standards.
Key Features:
- - Material: 316 stainless steel with a nitrile seal included for leak-tight connections.
- - Connections: Male SAE-ORB x Female NPT, with nominal sizes 3/4 in and 3/8 in respectively.
- - Rated for operation at pressures up to 6,000 psi within specified temperature range.
- - Rated for use within the temperature range of 30°F to 250°F.
- - Hex size: 1-1/4 in for wrench engagement.
- - Overall length: 1 5/16 in.
- - Includes a sealing component
- pre-applied thread sealant is not included.
- - Outside diameter: 1-1/4 in at the connection point.
- - Number of holes: 2, corresponding to connection ends.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.00
- Package Height: 3.00
- Package Weight: 0.45
