1-7/8-12 x 1-1/2" SAE-ORB x FNPT 316 SS Pipe Adapter MPN:24-1 1/2 F5OG-SS
1-7/8-12 x 1-1/2" SAE-ORB x FNPT 316 SS Pipe Adapter

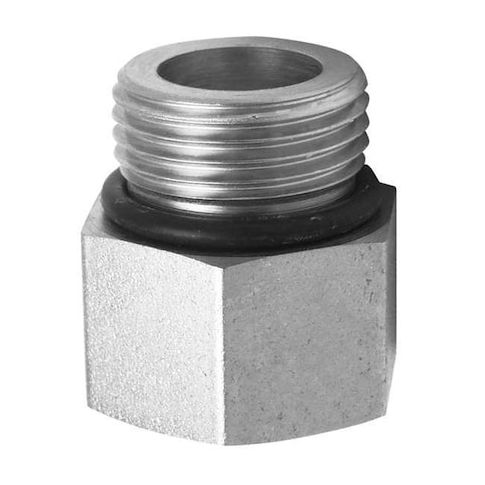

The PARKER - 24-1 1/2 F5OG-SS is a stainless steel pipe adapter rated for connection between components with differing connection types or sizes. It features a male SAE-ORB connection on one end and a female NPT connection on the other, accommodating pipe sizes of 1 7/8 inches and 1 1/2 inches respectively. Constructed from 316 stainless steel and including a nitrile seal
- suitable for hydraulic fluid systems according to specified parameters. The fitting conforms to SAE J1926-1 and SAE J514 standards and functions within the specified temperature range of 30°F to 250°F.
Key Features:
- - Material Grade: 316 Stainless Steel
- - Connection Types: SAE-ORB (Male) x FNPT (Female)
- - Nominal Pipe Sizes: 1 7/8 in (Side A), 1 1/2 in (Side B)
- - Maximum Operating Pressure: 2,400 psi
- - Seal Material: Nitrile included
- - Overall Length: 2 in
- - Hex Size for Wrenching: 2-1/4 in across flats
- - Color: Silver
- - Includes Seal: Yes
- - Application: Hydraulic Fluid
- - Standards: SAE J1926-1, SAE J514
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.00
- Package Height: 3.00
- Package Weight: 1.10
Product info last updated on February 5, 2026 12:55am UTC
Category: Pipes, Valves and Fittings
