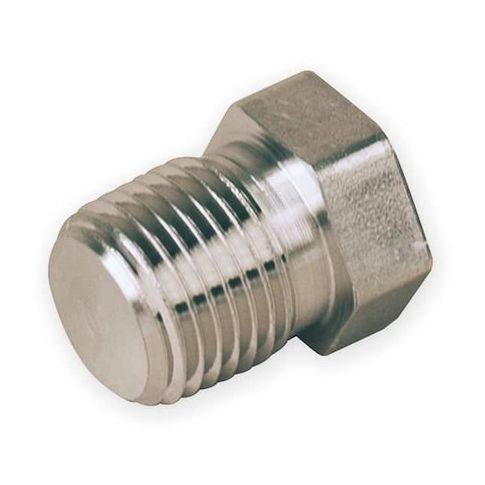

Hex Head Plug, 316L Stainless Steel, 1/16 in MNPT, 3/8 in Hex, 10, 000 psi Max Pressure MPN:1 PH-SS
The PARKER 1 PH-SS Hex Head Plug is a reliable solution for closing off pipes, fittings, or ports in various industrial systems. Made from corrosion-resistant 316L stainless steel, it provides a secure seal and withstands extreme temperatures from -425 to 1200 °F. With a maximum operating pressure of 10,000 psi, it's ideal for use in plumbing, hydraulic, pneumatic, and industrial applications. Its 3/8 in hex drive wrench ensures easy installation and removal, making it a convenient choice for maintenance and repair tasks. Conforms to ANSI B31.1 and ANSI B31.3 piping standards, ensuring compatibility with a wide range of systems.
Top product features:
- 316L stainless steel construction provides corrosion resistance and temperature tolerance
- Solid hex head plug design allows for easy installation and removal using a 3/8 in hex drive wrench
- Maximum operating pressure of 10,000 psi ensures reliable performance in high-pressure applications
Top product applications:
- Plumbing systems
- Hydraulic systems
- Pneumatic systems
The PARKER - 1 PH-SS is a solid hex head plug designed to close off the end of a pipe, fitting, or port within piping systems. Made from 316L stainless steel, it provides corrosion resistance and temperature tolerance
- compatibility with plumbing, hydraulic, pneumatic, and industrial systems should be verified against system specifications. It features a threaded connection with a 1/16 in -27 thread size and is tightened or removed using a 3/8 in hex drive wrench for installation per sealing guidelines
- leak-tight performance depends on proper installation and sealing practices. Maximum operating pressure: 10,000 psi. Temperature range: -425 to 1200 °F
- Conforms to ANSI B31.1 and ANSI B31.3 piping standards.
Key Features:
- - Material: 316L stainless steel construction
- - Plug type: Solid hex head plug with a 3/8 in hex wrenching size
- - Connection: Male National Pipe Thread (MNPT), size 1/16 in -27
- - Pressure Ratings: Maximum pressure rating: 10,000 psi
- - Temperature range: -425 to 1200 °F
- - Finish: Bright surface finish
- - Overall length: 1/2 in
- outside diameter: 1/16 in
- - Standards: Conforms to ANSI B31.1 and ANSI B31.3 piping standards
- - Does not include pre-applied thread sealant or additional seal components
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.63
- Package Width: 2.69
- Package Height: 1.00
- Package Weight: 0.05
