Buttweld Elbow, SS, ALOKxButt, 3/8x1/4In MPN:6-1/4 ZELW2-SS
Buttweld Elbow, SS, ALOKxButt, 3/8x1/4In

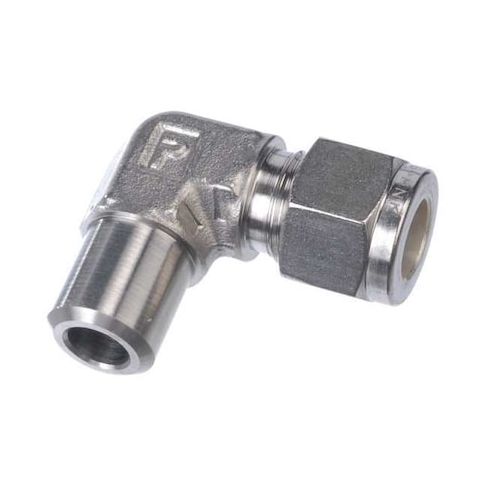

Upgrade your piping system with the Parker A-LOK Buttweld Elbow, designed for high-pressure and high-temperature applications. This 90-degree elbow adapter features a stainless steel construction with a 316 material grade, ensuring durability and resistance to corrosion. With a maximum operating pressure of 6,600 psi and a temperature of 1,200°F, it's ideal for use in industries such as oil and gas, chemical processing, and power generation. The buttweld connection on one side and compression fitting on the other provide a secure and leak-free connection, making it a reliable choice for critical piping systems.
Top product features:
- 90 degree elbow adapter provides a directional change in piping for improved system routing and flow management.
- Stainless steel construction offers high resistance to corrosion and durability in high-temperature applications.
- Compression fitting design allows for secure and leak-resistant connections to tubing, reducing the risk of fluid leaks and system failure.
Top product applications:
- Chemical Process Piping
- High-Temperature Heat Exchanger Systems
- Industrial Piping Systems for Corrosive Environments
Compression Fitting Elbow, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Butt Weld, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 3/8 in, Fitting Side B Tube Outer Diameter 1/4 in, Material Grade 316, Maximum Operating Pressure 6,600 psi, Maximum Operating Temperature 1,200 Degrees F, Overall Length 1 3/16 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Compatible Fitting Brands Parker A-LOK, Thread Size A 9/16-20, Series A-LOK
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.50
- Package Height: 0.80
- Package Weight: 0.10
Product info last updated on March 1, 2026 2:59pm UTC
Category: Pipes, Valves and Fittings
