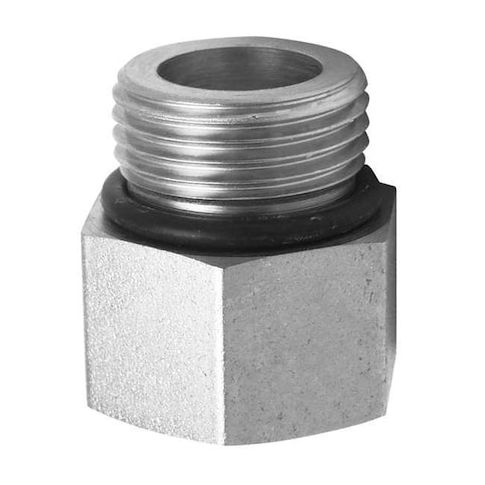

7/16-20 x 1/8" SAE-ORB x FNPT 316 SS Pipe Adapter MPN:4-1/8 F5OG-SS

• The PARKER - 4-1/8 F5OG-SS is a stainless steel pipe adapter designed for hydraulic fluid systems. It connects components with different connection types, featuring a male SAE-ORB 7/16-20 thread on one side and a female NPT 1/8" thread on the other. Constructed from 316 stainless steel, it provides corrosion resistance inherent to 316 stainless steel and is designed to transition between SAE J1926-1 SAE-ORB 7/16-20 and NPT 1/8" connections. The fitting includes a nitrile seal to provide sealing with a nitrile seal.
  Key Features:


  • - Material: 316 stainless steel construction.
  • - Connections: Male SAE-ORB 7/16-20 x Female NPT 1/8".
  • - Sealing: Includes a nitrile seal
  • no pre-applied thread sealant.
  • - Pressure Ratings: Maximum operating pressure up to 6,000 psi
  • steam pressure not specified.
  • - Temperature Range: Rated for service between 30 Degrees and 250 Degrees F.
  • - Dimensions: Overall length of 1 inch, hex wrench size 9/16 inch, and outside diameter 9/16 inch.
  • - Standards Compliance: Manufactured according to SAE J1926-1 and SAE J514 standards.
  • - Number of holes: 2.
