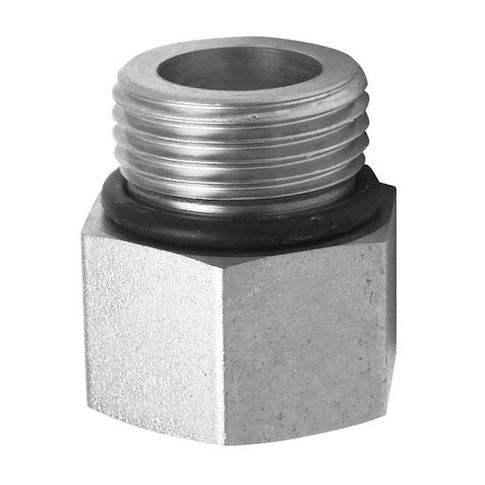

9/16-18" x 3/8-18" SAE-ORB x FNPT 316 SS Pipe Adapter MPN:6-3/8 F5OG-SS
The Parker 6-3/8 F5OG-SS stainless steel pipe adapter is a versatile component designed to join two components with different connection types and sizes. Its 316 stainless steel construction ensures compatibility with hydraulic fluids and durability under high-pressure conditions, making it suitable for applications in the aerospace, chemical processing, and oil and gas industries. This adapter features a male SAE-ORB connection on one side and a female NPT connection on the other, allowing for leak-tight connections and easy installation. Its compact design and high-pressure rating make it an ideal solution for a variety of hydraulic and pneumatic systems.
Top product features:
- The adapter includes a Nitrile seal for a leak-tight connection.
- The adapter is constructed from 316 stainless steel, compatible with hydraulic fluids.
- The adapter meets the specifications of SAE J1926-1 and SAE J514 standards.
Top product applications:
- Hydraulic System Connections
- Industrial Process Control
- Pneumatic System Connections
The PARKER - 6-3/8 F5OG-SS is a stainless steel pipe adapter designed to join two components with different connection types and sizes. It features a male SAE-ORB connection of 9/16 in on Side A and a female NPT connection of 3/8 in on Side B. Constructed from 316 stainless steel, this adapter is compatible with hydraulic fluids as specified and rated for use within the specified maximum pressure of 6,000 psi. It meets the specifications of SAE J1926-1 and SAE J514 standards.
Key Features:
- - Pipe Size: 9/16"-18 (male SAE-ORB) x 3/8"-18 (female NPT)
- - Material Grade: 316 Stainless Steel
- - Maximum Operating Pressure: 6,000 psi
- - Temperature Range: 30°F to 250°F
- - Includes Nitrile seal for leak-tight connection
- - Hex Size: 7/8" for wrench engagement
- - Overall Length: 1 1/4 in
- - Color: Silver
- - Number of Holes: 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.00
- Package Height: 2.90
- Package Weight: 0.25
