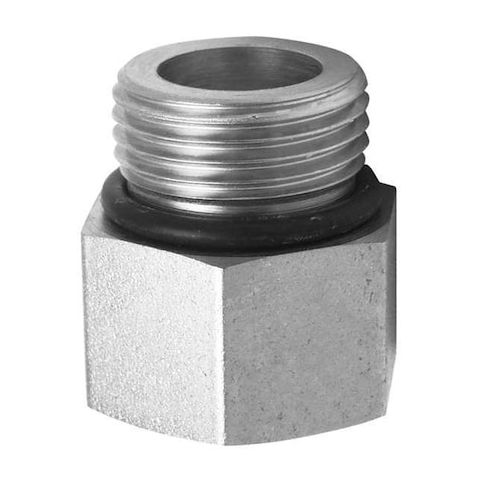

1-1/16-12 x 1/2" SAE-ORB x FNPT 316 SS Pipe Adapter MPN:12-1/2 F5OG-SS

• The PARKER - 12-1/2 F5OG-SS is a stainless steel pipe adapter designed to connect two components with different connection types and sizes. It features a male SAE-ORB connection on one end sized 1-1/16"-12 and a female NPT connection on the 1/2" end, providing a transition point compatible with hydraulic fluid systems within the specified pressure and temperature ranges. Constructed from 316 stainless steel, this adapter offers corrosion resistance and is suitable for applications within a temperature range: 30°F to 250°F and a maximum operating pressure of 6,000 psi. Nitrile seal included

• ensure proper installation for leak prevention. It conforms to SAE J1926-1 and SAE J514 standards.

  Key Features:

  • - Material: 316 Stainless Steel construction.
  • - Connection Types: Male SAE-ORB (1-1/16"-12) x Female NPT (1/2").
  • - Application: Rated for hydraulic fluid service.
  • - Temperature Range: 30°F to 250°F.
  • - Maximum Operating Pressure: 6,000 psi.
  • - Seal Included: Nitrile material seal supplied.
  • - Hex Size: 1-1/4" wrenching flats for installation.
  • - Overall Length: 1 3/8 in.
  • - Outside Diameter: 1-1/4" at connection end.
  • - Standards: Conforms to SAE J1926-1 and SAE J514.
