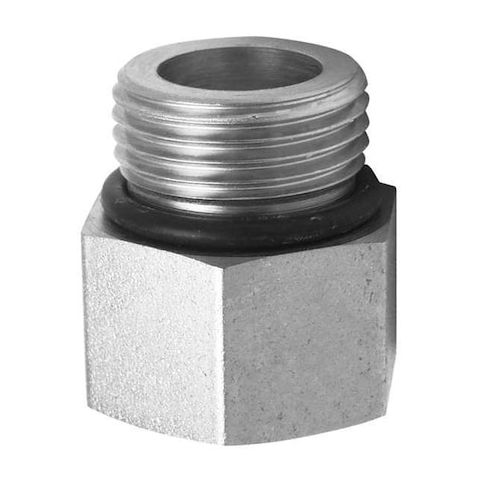

9/16-18 x 1/4" SAE-ORB x FNPT 316 SS Pipe Adapter MPN:6-1/4 F5OG-SS

• The PARKER - 6-1/4 F5OG-SS is a stainless steel pipe adapter designed to join two components with differing connection types and sizes, specifically an SAE-ORB male connection sized 9/16"-18 and an NPT female connection sized 1/4". It features 316 stainless steel construction. It conforms to SAE J1926-1 and SAE J514 standards and supports the following specifications: Maximum operating pressure: 6,000 psi

• Temperature range: 30 to 250 Degrees F. The fitting includes a nitrile elastomer seal
• no pre-applied thread sealant.

  Key Features:

  • - Material: 316 stainless steel.
  • - Connection types: SAE-ORB male (9/16"-18) to NPT female (1/4").
  • - Maximum operating pressure: 6,000 psi
  • Temperature range: 30 to 250 Degrees F.
  • - Nitrile elastomer seal included
  • no pre-applied thread sealant.
  • - Hex size for wrench: 3/4".
  • - Overall length: 1 1/8 in.
  • - Standards: SAE J1926-1, SAE J514.
