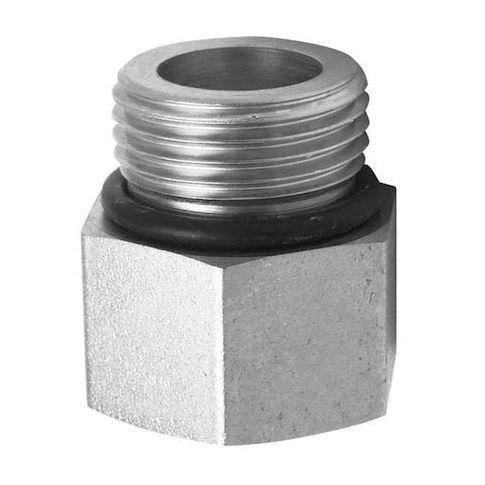

7/8-14 x 1/2" SAE-ORB x FNPT 316 SS Pipe Adapter MPN:8-1/2 F5OG-SS
The Parker 8-1/2 F5OG-SS is a versatile stainless steel pipe adapter designed for joining components with differing connection types and sizes in hydraulic fluid systems. This adapter facilitates transition between SAE-ORB and NPT thread standards, enabling conversion within the specified pressure rating. With a maximum operating pressure of 6,000 psi and a temperature range of 30 to 250 degrees Fahrenheit, it's ideal for various applications, including industrial machinery, hydraulic systems, and equipment maintenance. Its 316 stainless steel construction ensures durability and resistance to corrosion, making it a reliable choice for demanding environments.
Top product features:
- Constructed from 316 stainless steel, suitable for hydraulic fluid applications.
- Features a male SAE-ORB connection of 3/4 inch size on Side A and a female NPT connection of 1/2 inch size on Side B.
- Supports operating pressures up to 6,000 psi and a temperature range of 30 to 250 degrees Fahrenheit.
Top product applications:
- Hydraulic fluid system transition between differing connection types and sizes
- Conversion between SAE-ORB and NPT thread standards within the specified pressure rating
- Fluid power system connections where a stainless steel material is required to handle high pressures and temperatures
The PARKER - 8-1/2 F5OG-SS is a stainless steel pipe adapter designed to join components with differing connection types and sizes, facilitates transition between differing connection types and sizes in hydraulic fluid systems. Constructed from 316 stainless steel, it features a male SAE-ORB connection of 3/4 inch size on Side A and a female NPT connection of 1/2 inch size on Side B. This enables conversion between SAE-ORB and NPT thread standards within the specified pressure rating. The adapter supports operating pressures up to 6,000 psi and a temperature range of 30 to 250 degrees Fahrenheit. Key Features:
- - Material: 316 stainless steel, suitable for hydraulic fluid applications.
- - Connections: Male 3/4 in SAE-ORB x Female 1/2 in NPT threads.
- - Maximum operating pressure: 6,000 psi.
- - Operating temperature range: 30 Degrees to 250 Degrees F.
- - Includes nitrile seal to aid in sealing connections.
- - Hex size: 1-1/8 in for wrenching.
- - Overall length: 1 1/2 in.
- - Conforms to SAE J1926-1 and SAE J514 standards.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.00
- Package Height: 2.90
- Package Weight: 0.25
