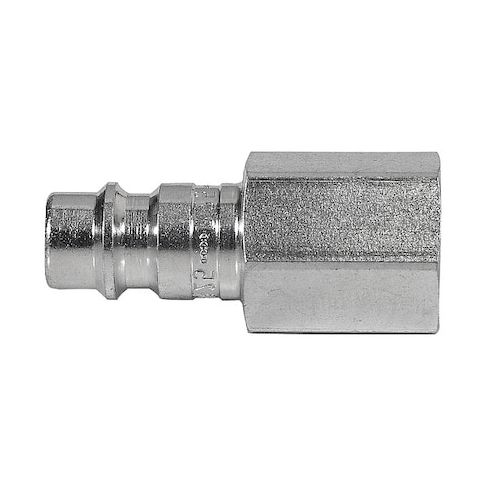

Quick Connect Socket, Steel, 1 1/2" L MPN:25SFIN17SXZ
The Parker 25SFIN17SXZ Quick Connect Socket is a reliable and efficient solution for pneumatic and general fluid applications. Its push-to-connect mating system and spring-loaded release sleeve facilitate easy connection and disconnection, reducing downtime and increasing productivity. Constructed from durable steel with a zinc-plated finish, this socket can withstand high pressures and temperatures, making it suitable for a wide range of industries, including manufacturing, construction, and oil and gas. Its aerodynamic valve ensures controlled flow, while the ball locking mechanism provides secure mating, making it an ideal choice for applications where safety and reliability are paramount.
Top product features:
- Push-to-connect mating with matching plugs facilitates quick and secure connections.
- The spring-loaded release sleeve allows for easy disconnection of the socket.
- The aerodynamic valve provides controlled flow and helps to regulate the flow of fluid.
Top product applications:
- Pneumatic applications
- General fluid applications
- European High Flow standard applications
The PARKER - 25SFIN17SXZ is a quick connect socket that provides push-to-connect mating with matching plugs. Facilitates push-to-connect mating and includes a spring-loaded release sleeve for disconnection. Constructed from steel with a zinc-plated finish, this socket is for use in pneumatic and general fluid applications (specified by compatibility with seals/temperature/pressure ranges). It has a body size of 1/4", a hose fitting size of 3/8", and uses NPTF (National Pipe Taper Fuel) threaded connections. The coupling incorporates an aerodynamic valve for controlled flow and features a Provides ball locking mechanism for mating (ball-type locking mechanism) for secure mating.
Key Features:
- - Material: Steel with zinc-plated surface coating
- - Connection Type: Female NPTF thread, 3/8"-18 thread size
- - Hose Fitting Gender: Female
- - Body Size: 1/4 inch quick connect air coupling
- - Rated for operation at up to 300 psi at 70°F (maximum working pressure)
- - Max. Flow Rate: 110 SCFM
- - Overall Length: 1.50 inches
- - Max. Outside Diameter: 15/16 inch
- - Seal Material: Nitrile
- - Temperature Range: -4°F to 212°F
- - Coupling Locking Type: Ball locking mechanism
- - Includes (4) Balls as locking components
- - Valve Type: Aerodynamic valve included
- - Interchange Type: Compatible with European High Flow standard
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 3.00
- Package Height: 3.00
- Package Weight: 0.72
