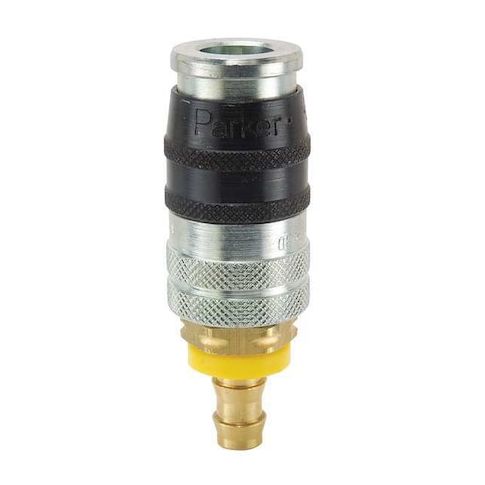

Coupler Body, Steel, Push On, 50 cfm MPN:EZ-371-6PL
The Parker EZ-371-6PL is a reliable and efficient quick connect hose coupling designed for pneumatic applications. Its push-to-connect locking mechanism allows for easy hose joining and separation without tools, ensuring a secure and airtight connection. Constructed from durable steel with a trivalent chrome finish, this coupling is suitable for use in demanding industrial environments. Its tubular valve controls air flow, making it ideal for applications such as pneumatic conveying, dust collection, and pneumatic tool operation. With a maximum working pressure of 300 psi and a flow rate of 707.92 liters per minute, this coupling is a versatile and reliable solution for various industries.
Top product features:
- Push-to-connect locking for hose joining and separation without tools
- Tubular valve to control air flow
- Trivalent chrome finish for corrosion resistance
Top product applications:
- Industrial Pneumatic Systems
- Air Compressor Applications
- Pneumatic Tool and Equipment Manufacturing
The PARKER - EZ-371-6PL is a quick connect hose coupling designed for pneumatic applications. It supports push-to-connect locking for hose joining and separation without tools, providing a connection intended to be airtight when installed using the specified hose size and under the stated working pressure and temperature ranges. The coupling is constructed from steel with a trivalent chrome finish, and it includes a tubular valve to control air flow. Compatible with 3/8 in hose inner diameter, this fitting has a rated maximum working pressure of 300 psi and a rated maximum flow rate of 707.92 liters per minute. Is rated for operation within a temperature range of -40°F to 250°F.
Key Features:
- - Connection type: Hose Barb with a male hose fitting of 3/8 in size
- - Coupling component: Socket
- - Coupling size: 3/8 in, suitable for industrial interchange standards
- - Barbed hose tail is designed with a barbed hose tail for hose retention
- - Barb size and hose fitting size: 3/8 in
- - Overall length: 3.38 in
- - Maximum outside diameter: 1.188 in
- - Seal material: Nitrile
- - Finish: Trivalent Chrome
- - Valve included: Yes, tubular type
Additional Information
- Country of Origin: IL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 1.30
- Package Height: 3.40
- Package Weight: 0.40
