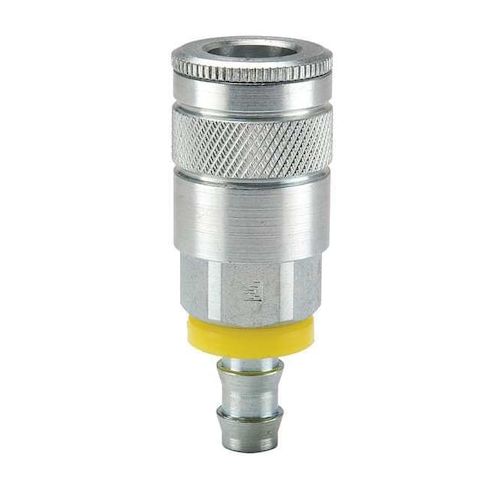

Coupler Body, Steel, Push On, 110 cfm MPN:16-5BP
The Parker 16-5BP Coupler Body is a reliable and efficient solution for pneumatic applications, enabling tool-free hose connection and disconnection with its sleeve locking mechanism. Constructed from durable steel with a trivalent chrome finish, this coupling includes a tubular valve for precise flow control. Suitable for compressed air service within a wide temperature range, it withstands pressures up to 300 psi at 70°F. Ideal for use in industrial settings, this coupling is perfect for applications such as pneumatic tool operation, air-powered machinery, and other compressed air-based systems, providing a secure and leak-free connection.
Top product features:
- The coupling supports tool-free hose connection and disconnection using the sleeve locking mechanism.
- The coupling includes a tubular valve for flow control.
- The coupling is constructed from steel with a trivalent chrome finish.
Top product applications:
- Pneumatic
- Compressed Air Service
- Hose Connection and Disconnection
The PARKER - 16-5BP is a hose coupling designed for pneumatic applications. It supports tool-free hose connection and disconnection using the sleeve locking mechanism. This coupling is constructed from steel with a trivalent chrome finish and includes a tubular valve for flow control. It is compatible with 3/8 in hose inner diameter and has a 1/2 in body and coupling size, is compatible with compressed air service within the specified temperature range (-40°F to 250°F) and maximum working pressure (300 psi @ 70°F).
Key Features:
- - Application: Pneumatic
- - Connection Type: Hose Barb with Male fitting gender
- - Barb Size: 3/8 in
- Hose Fitting Size: 3/8 in
- - Coupling Size and Body Size: 1/2 in
- - Includes tubular valve for flow control
- - Material: Steel with trivalent chrome finish
- - Seal Material: Nitrile
- - Overall Length: 3.38 in (3 3/8 in)
- - Maximum Outside Diameter: 1.19 in (1 3/16 in)
- - Interchange Type: Industrial
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.20
- Package Width: 1.20
- Package Height: 3.30
- Package Weight: 0.40
